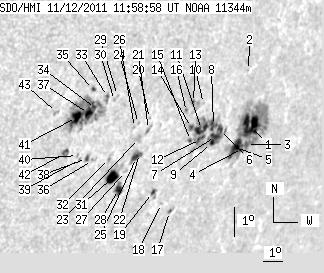

SDO HMI 2011-11-12 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.74 | 362.78 | 93.13 | 324.62 | -17.88 | 103.07 | 52.98 | 245.93 | 0.8327 | 137.9 | 45.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.69 | 124.88 | 21.23 | 122.30 | -17.77 | 106.73 | 56.64 | 247.23 | 0.8646 | 680.0 | 187.2 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -16.00 | 105.81 | 55.72 | 248.98 | 0.8530 | 555.0 | 521.8 | |
| 2.15 | -1.00 | 2.12 | -1.00 | -18.38 | 106.80 | 56.72 | 246.58 | 0.8666 | -376.8 | 999999 | |
| 1.64 | -1.00 | 1.60 | -1.00 | -18.50 | 106.63 | 56.55 | 246.40 | 0.8655 | -217.4 | 999999 | |
| 11.71 | -1.00 | 11.36 | -1.00 | -18.44 | 106.21 | 56.12 | 246.33 | 0.8620 | 660.8 | 999999 | |
| 2.50 | 71.95 | 2.34 | 66.23 | -17.82 | 105.07 | 54.99 | 246.70 | 0.8511 | 588.9 | 477.2 | |
| 3.87 | -6.00 | 3.62 | -6.00 | -18.03 | 104.90 | 54.81 | 246.40 | 0.8502 | 631.7 | 999999 | |
| 4.56 | -6.00 | 4.22 | -6.00 | -17.67 | 104.63 | 54.54 | 246.73 | 0.8469 | 594.5 | 999999 | |
| 1.20 | -6.00 | 1.13 | -6.00 | -18.25 | 104.78 | 54.70 | 246.12 | 0.8497 | -166.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -16.94 | 103.77 | 53.69 | 247.31 | 0.8377 | -81.0 | -126.2 | |
| 7.40 | -6.00 | 6.76 | -6.00 | -17.77 | 104.03 | 53.94 | 246.43 | 0.8420 | 833.1 | 999999 | |
| 3.44 | -6.00 | 3.15 | -6.00 | -18.09 | 104.12 | 54.03 | 246.09 | 0.8436 | 575.9 | 999999 | |
| 1.20 | 7.66 | 1.07 | 6.84 | -16.88 | 103.23 | 53.14 | 247.20 | 0.8327 | -473.8 | 126.5 | |
| 2.15 | -6.00 | 1.93 | -6.00 | -17.68 | 103.46 | 53.37 | 246.35 | 0.8369 | 791.9 | 999999 | |
| 1.12 | -6.00 | 1.01 | -6.00 | -18.10 | 103.59 | 53.50 | 245.92 | 0.8391 | 695.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.30 | -17.16 | 102.98 | 52.89 | 246.81 | 0.8312 | -110.0 | -40.7 | |
| 1.03 | 1.12 | 0.95 | 1.03 | -20.36 | 103.55 | 53.46 | 243.33 | 0.8451 | 458.2 | 396.0 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -20.08 | 102.98 | 52.90 | 243.45 | 0.8395 | -424.0 | -289.1 | |
| 1.38 | 4.39 | 1.23 | 3.91 | -19.70 | 102.33 | 52.24 | 243.66 | 0.8327 | -469.1 | -377.7 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -17.29 | 101.15 | 51.07 | 246.04 | 0.8150 | 498.0 | 469.6 | |
| 0.00 | 3.79 | 0.00 | 3.23 | -17.64 | 101.24 | 51.15 | 245.66 | 0.8168 | 497.0 | 328.2 | |
| 0.77 | 9.21 | 0.66 | 7.87 | -18.40 | 101.10 | 51.01 | 244.73 | 0.8178 | 322.9 | 114.4 | |
| 0.00 | 5.25 | 0.00 | 4.45 | -17.91 | 100.85 | 50.76 | 245.21 | 0.8141 | 424.0 | 220.7 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -17.43 | 100.66 | 50.57 | 245.71 | 0.8108 | 405.0 | 444.8 | |
| 4.30 | -22.00 | 3.68 | -22.00 | -18.52 | 101.00 | 50.91 | 244.55 | 0.8173 | -237.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -17.55 | 100.51 | 50.42 | 245.51 | 0.8098 | 431.0 | 362.8 | |
| 0.00 | 1.46 | 0.00 | 1.25 | -18.95 | 100.63 | 50.54 | 243.91 | 0.8153 | -266.0 | -172.6 | |
| 4.56 | 7.32 | 3.89 | 6.24 | -19.52 | 100.53 | 50.44 | 243.21 | 0.8162 | -461.0 | -383.8 | |
| 0.00 | 1.12 | 0.00 | 0.91 | -16.49 | 99.30 | 49.21 | 246.34 | 0.7949 | -122.0 | -217.7 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -16.64 | 99.21 | 49.12 | 246.12 | 0.7945 | -370.0 | -281.5 | |
| 9.64 | 18.76 | 8.11 | 15.78 | -19.11 | 100.06 | 49.97 | 243.50 | 0.8107 | -585.6 | -69.7 | |
| 0.00 | 2.50 | 0.00 | 2.07 | -18.49 | 99.66 | 49.57 | 244.08 | 0.8049 | -483.0 | -357.1 | |
| 0.43 | 3.10 | 0.35 | 2.49 | -16.50 | 98.83 | 48.74 | 246.15 | 0.7904 | -522.2 | -401.5 | |
| 0.34 | 79.27 | 0.28 | 62.82 | -16.86 | 98.39 | 48.30 | 245.55 | 0.7872 | -279.2 | -373.5 | |
| 1.38 | 2.15 | 1.09 | 1.70 | -16.25 | 98.09 | 48.01 | 246.18 | 0.7822 | -569.9 | -471.8 | |
| 0.00 | 1.12 | 0.00 | 0.91 | -18.52 | 98.85 | 48.77 | 243.74 | 0.7974 | -449.0 | -412.7 | |
| 5.59 | -34.00 | 4.45 | -34.00 | -17.00 | 98.11 | 48.03 | 245.27 | 0.7850 | -732.5 | 999999 | |
| 1.89 | 2.50 | 1.54 | 2.03 | -18.44 | 98.54 | 48.45 | 243.71 | 0.7941 | -477.0 | -400.4 | |
| 0.00 | 1.29 | 0.00 | 1.04 | -18.46 | 98.21 | 48.13 | 243.56 | 0.7911 | -384.0 | -436.8 | |
| 0.00 | 1.38 | 0.00 | 1.11 | -18.33 | 98.07 | 47.98 | 243.66 | 0.7893 | -567.0 | -546.8 | |
| 6.80 | -34.00 | 5.36 | -34.00 | -17.11 | 97.59 | 47.50 | 244.94 | 0.7802 | -1020.6 | 999999 | |
| 0.00 | 4.39 | 0.00 | 3.48 | -18.24 | 97.48 | 47.39 | 243.52 | 0.7832 | -738.0 | -615.4 | |
| 0.00 | 2.07 | 0.00 | 1.60 | -16.91 | 96.61 | 46.52 | 244.79 | 0.7697 | -674.0 | -580.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
