Sunspot Group 11339

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11339	126.25	809.15	118.18	743.89	19.13	106.00	56.46	290.80	0.8434	-440.9	-246.8

previous or next observation for the same group / back to the solar disc

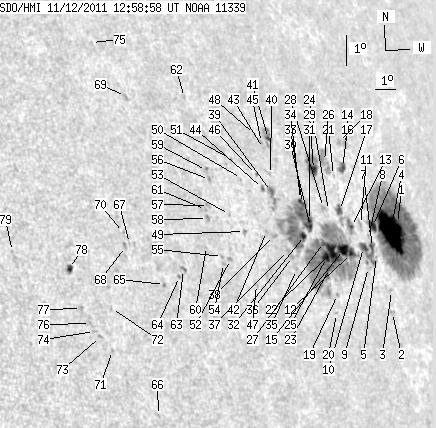

SDO HMI 2011-11-12 12:58:58 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	2.84	299.90	2.84	297.53	19.18	109.19	59.66	290.31	0.8711	153.2	-11.8
2	0.00	2.41	0.00	2.28	16.51	107.46	57.92	287.46	0.8537	-638.0	-518.1
3	0.00	1.29	0.00	1.23	17.17	107.72	58.18	288.20	0.8567	-528.0	-418.3
4	51.29	-1.00	50.51	-1.00	18.96	108.63	59.09	290.13	0.8663	-782.7	999999
5	0.00	1.20	0.00	1.14	18.24	107.38	57.85	289.48	0.8550	-357.0	-350.8
6	6.11	-1.00	5.86	-1.00	19.16	107.65	58.11	290.51	0.8584	-773.1	999999
7	1.89	20.91	1.79	19.65	18.52	107.30	57.76	289.83	0.8546	-697.7	-600.0
8	0.00	1.55	0.00	1.47	18.87	107.25	57.71	290.23	0.8546	-574.0	-501.2
9	0.00	3.01	0.00	2.81	17.93	106.75	57.22	289.21	0.8492	-281.0	-350.9
10	5.42	-7.00	5.07	-7.00	18.55	106.78	57.24	289.93	0.8502	-632.1	999999
11	0.00	3.01	0.00	2.84	19.25	106.99	57.45	290.72	0.8529	-547.0	-452.0
12	2.50	216.17	2.29	192.12	18.39	106.01	56.47	289.88	0.8433	-688.0	-501.0
13	1.03	18.16	0.96	16.77	19.22	106.44	56.90	290.77	0.8482	-751.3	-399.9
14	0.00	3.10	0.00	3.00	21.74	107.58	58.04	293.50	0.8614	166.0	112.6
15	7.49	-12.00	6.79	-12.00	18.54	105.63	56.09	290.11	0.8401	-841.0	999999
16	5.25	6.88	4.98	6.53	21.04	106.96	57.42	292.80	0.8552	-525.4	-426.5
17	3.10	-13.00	2.85	-13.00	19.73	106.03	56.49	291.45	0.8454	-678.4	999999
18	0.00	3.10	0.00	2.97	21.82	107.20	57.67	293.66	0.8584	-26.0	-49.4
19	0.00	1.20	0.00	1.06	17.19	104.66	55.12	288.67	0.8294	-357.0	-314.2
20	0.00	1.03	0.00	0.90	16.61	104.35	54.81	288.03	0.8258	388.0	234.3
21	0.00	0.77	0.00	0.72	20.82	106.30	56.76	292.67	0.8493	-388.0	-357.6
22	10.07	-12.00	8.99	-12.00	18.50	105.00	55.46	290.18	0.8344	-896.0	999999
23	0.69	-12.00	0.61	-12.00	17.99	104.59	55.05	289.64	0.8299	-846.2	999999
24	0.00	1.03	0.00	0.94	19.76	105.42	55.88	291.59	0.8400	-255.0	-331.9
25	4.56	-12.00	4.03	-12.00	18.33	104.58	55.05	290.05	0.8304	-1000.3	999999
26	0.00	13.34	0.00	12.38	21.27	106.04	56.50	293.24	0.8478	-178.0	-199.7
27	0.95	-12.00	0.84	-12.00	18.80	104.64	55.11	290.59	0.8316	-740.3	999999
28	0.00	2.58	0.00	2.33	19.86	105.19	55.65	291.76	0.8382	-387.0	-378.5
29	6.37	19.79	5.79	18.02	21.05	105.28	55.74	293.14	0.8409	-814.6	-398.8
30	0.86	93.63	0.76	81.02	19.32	104.19	54.65	291.29	0.8283	-800.4	-637.1
31	1.20	-30.00	1.06	-30.00	19.50	104.22	54.69	291.51	0.8289	-734.2	999999
32	2.50	-30.00	2.17	-30.00	19.05	103.73	54.19	291.07	0.8237	-909.7	999999
33	3.18	-30.00	2.80	-30.00	20.04	104.11	54.58	292.17	0.8288	-609.7	999999
34	0.43	-30.00	0.38	-30.00	20.16	104.07	54.53	292.33	0.8287	115.8	999999
35	0.00	1.12	0.00	0.95	18.04	102.84	53.30	290.01	0.8136	-411.0	-463.5
36	0.00	2.58	0.00	2.19	18.44	102.81	53.27	290.51	0.8140	-460.0	-426.0
37	0.00	2.32	0.00	1.97	18.63	102.68	53.14	290.77	0.8131	-489.0	-452.3
38	0.00	2.41	0.00	2.02	19.12	102.17	52.63	291.47	0.8091	-789.0	-668.2
39	3.27	12.99	2.79	11.07	20.48	102.66	53.13	293.00	0.8164	-316.6	-153.6
40	0.00	0.95	0.00	0.81	21.00	102.88	53.34	293.58	0.8194	38.0	-15.3
41	2.07	11.45	1.81	10.00	22.12	103.37	53.83	294.80	0.8261	-666.2	-520.8
42	0.00	1.29	0.00	1.07	19.26	101.82	52.28	291.71	0.8060	-385.0	-316.4
43	0.00	0.86	0.00	0.74	21.82	102.94	53.40	294.55	0.8216	-540.0	-538.2
44	0.00	2.58	0.00	2.18	20.59	102.24	52.71	293.23	0.8127	358.0	244.5
45	0.00	1.20	0.00	1.04	22.01	102.93	53.39	294.78	0.8219	-633.0	-604.6
46	0.00	1.20	0.00	1.02	21.03	102.15	52.61	293.79	0.8127	283.0	203.1
47	0.00	2.24	0.00	1.80	17.67	100.64	51.10	290.00	0.7914	301.0	216.0
48	0.00	0.95	0.00	0.82	22.27	102.70	53.16	295.15	0.8204	-589.0	-534.9
49	0.00	1.98	0.00	1.61	19.31	100.72	51.18	292.02	0.7954	503.0	381.4
50	0.00	0.69	0.00	0.57	20.94	101.32	51.79	293.88	0.8047	204.0	219.1
51	0.00	1.03	0.00	0.86	21.55	101.11	51.57	294.67	0.8041	243.0	185.5
52	0.00	2.41	0.00	1.91	18.48	99.68	50.14	291.23	0.7833	618.0	563.8
53	0.00	1.03	0.00	0.83	19.86	100.21	50.67	292.82	0.7916	399.0	356.9
54	0.00	1.55	0.00	1.22	18.37	99.29	49.75	291.18	0.7792	593.0	443.9
55	0.00	1.12	0.00	0.88	18.59	99.33	49.79	291.45	0.7800	674.0	518.5
56	0.00	1.98	0.00	1.59	20.98	99.72	50.18	294.33	0.7893	720.0	592.2
57	0.00	2.32	0.00	1.84	20.18	99.31	49.77	293.45	0.7834	598.0	549.1
58	0.00	3.10	0.00	2.44	19.78	99.09	49.55	293.01	0.7802	734.0	612.2
59	0.00	1.55	0.00	1.25	21.26	99.70	50.16	294.69	0.7899	532.0	511.9
60	0.00	0.86	0.00	0.67	18.92	98.69	49.15	292.03	0.7742	523.0	395.0
61	0.00	1.38	0.00	1.09	20.06	99.11	49.57	293.35	0.7811	584.0	532.1
62	0.00	1.20	0.00	0.98	23.57	99.74	50.20	297.51	0.7963	391.0	300.4
63	0.00	2.67	0.00	2.02	18.26	97.34	47.80	291.53	0.7586	571.0	513.7
64	0.00	1.38	0.00	1.04	18.06	97.08	47.54	291.33	0.7554	632.0	514.2
65	0.00	1.46	0.00	1.08	17.84	96.32	46.78	291.25	0.7466	728.0	642.8
66	0.00	1.29	0.00	0.92	13.89	94.87	45.34	286.30	0.7217	578.0	456.1
67	0.00	0.77	0.00	0.57	19.15	95.19	45.65	293.31	0.7378	587.0	518.8
68	0.00	2.50	0.00	1.82	19.07	94.98	45.44	293.26	0.7353	603.0	495.5
69	0.00	2.50	0.00	1.93	23.72	96.90	47.36	298.60	0.7695	619.0	534.2
70	0.00	0.77	0.00	0.57	19.50	95.04	45.50	293.81	0.7373	523.0	468.2
71	0.00	1.12	0.00	0.78	15.92	93.42	43.88	289.46	0.7093	595.0	508.9
72	0.00	1.29	0.00	0.91	17.20	93.75	44.21	291.12	0.7164	667.0	502.5
73	0.00	1.81	0.00	1.26	16.37	93.03	43.49	290.19	0.7059	638.0	558.0
74	0.00	1.29	0.00	0.90	16.53	92.82	43.28	290.47	0.7039	699.0	609.0
75	0.00	1.38	0.00	1.06	25.49	96.14	46.60	301.08	0.7681	494.0	378.3
76	0.00	1.29	0.00	0.90	16.78	92.72	43.18	290.85	0.7034	610.0	460.9
77	0.00	1.98	0.00	1.37	17.25	92.47	42.93	291.58	0.7019	614.0	407.5
78	3.18	4.22	2.21	2.93	18.49	92.33	42.79	293.34	0.7040	-674.2	-558.9
79	0.00	1.03	0.00	0.70	19.09	90.11	40.57	295.01	0.6806	629.0	495.2

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
