SDO HMI 2011-11-12 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.36 | 316.60 | 24.86 | 173.64 | 27.97 | 43.80 | -5.73 | 11.88 | 0.4306 | -1187.5 | -421.0 | |
|
previous
or next observation for the same group /

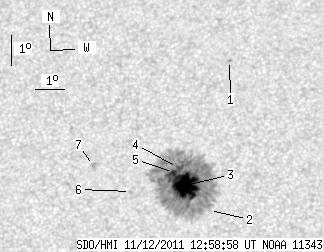

back to the solar disc SDO HMI 2011-11-12 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.83 | 32.07 | 45.17 | -4.37 | 7.61 | 0.4897 | -821.0 | -616.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 27.10 | 44.71 | -4.83 | 10.47 | 0.4143 | -258.0 | -233.3 | |
| 41.48 | 309.80 | 22.73 | 169.87 | 27.91 | 43.86 | -5.67 | 11.79 | 0.4294 | -1313.7 | -417.8 | |
| 1.38 | -3.00 | 0.76 | -3.00 | 28.50 | 43.56 | -5.98 | 12.07 | 0.4395 | -718.9 | 999999 | |
| 2.50 | -3.00 | 1.37 | -3.00 | 28.33 | 43.44 | -6.10 | 12.41 | 0.4374 | -867.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 27.70 | 42.02 | -7.52 | 15.58 | 0.4332 | -790.0 | -624.6 | |
| 0.00 | 3.36 | 0.00 | 1.86 | 28.54 | 40.70 | -8.84 | 17.47 | 0.4516 | -808.0 | -582.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
