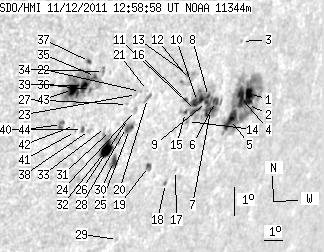

SDO HMI 2011-11-12 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.34 | 366.77 | 81.91 | 333.68 | -17.93 | 103.14 | 53.60 | 246.08 | 0.8384 | 154.6 | 69.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.65 | 123.58 | 4.64 | 123.08 | -17.65 | 106.92 | 57.38 | 247.58 | 0.8703 | 654.0 | 172.7 | |
| 0.43 | -1.00 | 0.43 | -1.00 | -18.00 | 107.04 | 57.50 | 247.22 | 0.8720 | 145.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.82 | -15.96 | 105.73 | 56.20 | 249.15 | 0.8569 | 362.0 | 389.8 | |
| 6.88 | -1.00 | 6.80 | -1.00 | -17.73 | 106.49 | 56.96 | 247.38 | 0.8671 | 875.1 | 999999 | |
| 11.36 | -1.00 | 11.21 | -1.00 | -18.44 | 106.28 | 56.74 | 246.51 | 0.8670 | 670.1 | 999999 | |
| 3.79 | 74.35 | 3.61 | 69.62 | -17.82 | 105.13 | 55.59 | 246.88 | 0.8561 | 586.5 | 463.7 | |
| 5.08 | -6.00 | 4.82 | -6.00 | -18.10 | 104.98 | 55.44 | 246.52 | 0.8556 | 525.6 | 999999 | |
| 1.20 | -6.00 | 1.13 | -6.00 | -17.64 | 104.66 | 55.12 | 246.94 | 0.8517 | 518.4 | 999999 | |
| 1.20 | -6.00 | 1.13 | -6.00 | -17.83 | 104.63 | 55.09 | 246.72 | 0.8520 | 658.4 | 999999 | |
| 6.88 | -6.00 | 6.38 | -6.00 | -17.77 | 104.12 | 54.58 | 246.63 | 0.8475 | 844.7 | 999999 | |
| 4.13 | -6.00 | 3.84 | -6.00 | -18.06 | 104.14 | 54.60 | 246.31 | 0.8484 | 572.6 | 999999 | |
| 0.00 | 10.07 | 0.00 | 9.12 | -17.04 | 103.37 | 53.83 | 247.24 | 0.8392 | 125.0 | 103.8 | |
| 1.03 | 1.81 | 0.93 | 1.63 | -16.88 | 103.19 | 53.66 | 247.37 | 0.8372 | -391.9 | -350.4 | |
| 0.00 | 3.10 | 0.00 | 2.87 | -18.39 | 103.86 | 54.32 | 245.85 | 0.8469 | 588.0 | 515.2 | |
| 1.29 | -6.00 | 1.19 | -6.00 | -18.09 | 103.62 | 54.08 | 246.11 | 0.8441 | 670.0 | 999999 | |
| 1.20 | -6.00 | 1.10 | -6.00 | -17.67 | 103.43 | 53.89 | 246.53 | 0.8414 | 690.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -19.96 | 103.98 | 54.44 | 244.11 | 0.8520 | 480.0 | 446.2 | |
| 1.03 | 1.46 | 0.97 | 1.37 | -20.36 | 103.64 | 54.10 | 243.55 | 0.8504 | 366.8 | 479.0 | |
| 3.01 | 4.39 | 2.72 | 3.97 | -19.76 | 102.43 | 52.89 | 243.82 | 0.8385 | -445.3 | -472.1 | |
| 0.00 | 3.87 | 0.00 | 3.36 | -17.55 | 101.41 | 51.87 | 246.01 | 0.8231 | 553.0 | 387.6 | |
| 0.00 | 0.95 | 0.00 | 0.82 | -17.29 | 101.30 | 51.76 | 246.28 | 0.8214 | 620.0 | 513.9 | |
| 0.00 | 1.29 | 0.00 | 1.11 | -17.31 | 100.96 | 51.42 | 246.14 | 0.8183 | 424.0 | 415.1 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -17.40 | 100.79 | 51.25 | 245.98 | 0.8170 | 518.0 | 446.9 | |
| 0.00 | 3.27 | 0.00 | 2.81 | -17.91 | 100.95 | 51.41 | 245.44 | 0.8199 | 626.0 | 371.6 | |
| 3.53 | 7.49 | 3.05 | 6.46 | -18.51 | 100.89 | 51.35 | 244.72 | 0.8213 | -287.2 | 130.5 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -18.15 | 100.69 | 51.15 | 245.07 | 0.8184 | 578.0 | 529.9 | |
| 0.00 | 0.34 | 0.00 | 0.29 | -17.70 | 100.46 | 50.92 | 245.52 | 0.8149 | 614.0 | 558.5 | |
| 1.29 | -25.00 | 1.11 | -25.00 | -18.44 | 100.71 | 51.17 | 244.74 | 0.8194 | 118.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.71 | -22.09 | 101.98 | 52.44 | 241.02 | 0.8418 | -393.0 | -340.6 | |
| 4.65 | 8.00 | 4.01 | 6.91 | -19.48 | 100.56 | 51.02 | 243.47 | 0.8213 | -444.4 | -412.8 | |
| 0.00 | 0.34 | 0.00 | 0.29 | -18.50 | 99.94 | 50.40 | 244.39 | 0.8126 | 59.0 | 149.2 | |
| 12.22 | 25.04 | 10.39 | 21.28 | -19.10 | 99.99 | 50.46 | 243.70 | 0.8150 | -517.3 | -16.0 | |
| 0.00 | 0.52 | 0.00 | 0.43 | -18.39 | 99.65 | 50.11 | 244.41 | 0.8095 | -485.0 | -457.5 | |
| 0.00 | 3.44 | 0.00 | 2.80 | -16.59 | 98.88 | 49.34 | 246.27 | 0.7965 | -536.0 | -410.5 | |
| 1.20 | 76.42 | 0.98 | 61.24 | -16.73 | 98.55 | 49.01 | 245.97 | 0.7937 | 398.1 | -408.1 | |
| 1.03 | -35.00 | 0.84 | -35.00 | -17.13 | 98.45 | 48.91 | 245.45 | 0.7941 | -193.6 | 999999 | |
| 1.38 | 1.64 | 1.10 | 1.31 | -16.24 | 98.10 | 48.56 | 246.40 | 0.7877 | -594.9 | -580.3 | |
| 0.00 | 3.01 | 0.00 | 2.49 | -18.45 | 98.90 | 49.36 | 244.05 | 0.8027 | -469.0 | -410.2 | |
| 3.36 | -35.00 | 2.70 | -35.00 | -16.99 | 98.07 | 48.53 | 245.48 | 0.7899 | -762.8 | 999999 | |
| 2.15 | 2.67 | 1.76 | 2.19 | -18.40 | 98.54 | 49.00 | 243.97 | 0.7992 | -530.8 | -400.0 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -18.45 | 98.23 | 48.69 | 243.79 | 0.7964 | -515.0 | -451.2 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -18.26 | 98.10 | 48.57 | 243.98 | 0.7946 | -638.0 | -574.9 | |
| 6.37 | -35.00 | 5.07 | -35.00 | -17.10 | 97.59 | 48.05 | 245.17 | 0.7856 | -1038.7 | 999999 | |
| 0.00 | 4.22 | 0.00 | 3.38 | -18.20 | 97.47 | 47.93 | 243.79 | 0.7883 | -776.0 | -622.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
