SDO HMI 2011-11-12 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.04 | 769.20 | 121.14 | 728.06 | 19.14 | 106.10 | 57.66 | 290.60 | 0.8537 | -443.9 | -257.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

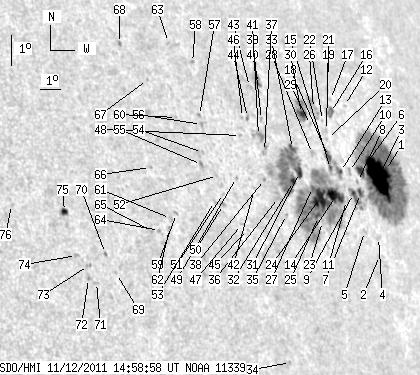

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.70 | 284.26 | 3.82 | 290.90 | 19.13 | 109.20 | 60.76 | 290.10 | 0.8798 | 201.0 | -23.8 | |
| 0.00 | 1.20 | 0.00 | 1.17 | 16.58 | 107.39 | 58.95 | 287.41 | 0.8626 | -662.0 | -457.9 | |
| 46.29 | -1.00 | 47.03 | -1.00 | 18.97 | 108.65 | 60.21 | 289.99 | 0.8753 | -761.3 | 999999 | |
| 0.00 | 2.41 | 0.00 | 2.36 | 17.12 | 107.61 | 59.17 | 288.02 | 0.8650 | -155.0 | -235.6 | |
| 0.00 | 1.98 | 0.00 | 1.90 | 17.34 | 106.88 | 58.44 | 288.36 | 0.8590 | -510.0 | -452.6 | |
| 6.28 | -1.00 | 6.21 | -1.00 | 19.17 | 107.64 | 59.20 | 290.36 | 0.8674 | -753.4 | 999999 | |
| 3.01 | 20.05 | 2.94 | 19.42 | 18.50 | 107.26 | 58.82 | 289.65 | 0.8635 | -679.3 | -591.7 | |
| 0.00 | 1.38 | 0.00 | 1.35 | 18.88 | 107.28 | 58.84 | 290.08 | 0.8642 | -621.0 | -567.8 | |
| 2.06 | -7.00 | 1.99 | -7.00 | 18.52 | 106.84 | 58.40 | 289.73 | 0.8601 | -730.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 2.26 | 19.20 | 106.98 | 58.54 | 290.49 | 0.8621 | -564.0 | -506.7 | |
| 0.00 | 3.10 | 0.00 | 2.94 | 18.33 | 106.32 | 57.88 | 289.59 | 0.8554 | -366.0 | -406.8 | |
| 0.00 | 1.12 | 0.00 | 1.13 | 21.23 | 107.93 | 59.49 | 292.67 | 0.8723 | -191.0 | -144.2 | |
| 1.55 | 226.53 | 1.48 | 207.24 | 19.23 | 106.45 | 58.01 | 290.60 | 0.8577 | -672.2 | -489.8 | |
| 13.42 | -13.00 | 12.56 | -13.00 | 18.48 | 105.75 | 57.31 | 289.85 | 0.8507 | -757.5 | 999999 | |
| 1.20 | -13.00 | 1.14 | -13.00 | 19.34 | 105.93 | 57.49 | 290.83 | 0.8534 | 129.4 | 999999 | |
| 2.84 | 5.76 | 2.78 | 5.64 | 21.05 | 106.94 | 58.50 | 292.63 | 0.8641 | -550.7 | -420.3 | |
| 0.00 | 0.77 | 0.00 | 0.76 | 21.45 | 107.20 | 58.76 | 293.04 | 0.8668 | -403.0 | -369.3 | |
| 4.90 | -13.00 | 4.65 | -13.00 | 19.71 | 106.02 | 57.58 | 291.24 | 0.8546 | -647.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.62 | 21.80 | 107.24 | 58.80 | 293.43 | 0.8676 | -117.0 | -131.2 | |
| 0.00 | 0.95 | 0.00 | 0.90 | 20.27 | 106.28 | 57.84 | 291.84 | 0.8576 | -568.0 | -444.2 | |
| 0.00 | 1.20 | 0.00 | 1.16 | 20.51 | 106.36 | 57.92 | 292.11 | 0.8587 | -423.0 | -343.9 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 20.83 | 106.32 | 57.88 | 292.48 | 0.8587 | -409.0 | -353.2 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 17.75 | 104.64 | 56.20 | 289.17 | 0.8400 | -554.0 | -484.9 | |
| 15.66 | -13.00 | 14.32 | -13.00 | 18.46 | 104.82 | 56.38 | 289.97 | 0.8426 | -896.1 | 999999 | |
| 2.15 | -13.00 | 1.95 | -13.00 | 17.91 | 104.49 | 56.05 | 289.38 | 0.8389 | -765.4 | 999999 | |
| 0.00 | 15.14 | 0.00 | 14.45 | 21.22 | 106.02 | 57.58 | 292.99 | 0.8568 | -169.0 | -223.2 | |
| 1.46 | -13.00 | 1.33 | -13.00 | 18.81 | 104.60 | 56.16 | 290.42 | 0.8411 | -662.4 | 999999 | |
| 0.00 | 2.93 | 0.00 | 2.71 | 19.85 | 105.15 | 56.71 | 291.54 | 0.8475 | -510.0 | -359.8 | |
| 0.00 | 1.55 | 0.00 | 1.46 | 20.74 | 105.55 | 57.11 | 292.51 | 0.8522 | -613.0 | -524.3 | |
| 5.51 | 19.19 | 5.15 | 17.96 | 21.10 | 105.23 | 56.79 | 292.99 | 0.8501 | -787.7 | -400.8 | |
| 5.25 | 91.80 | 4.73 | 81.51 | 19.30 | 104.12 | 55.68 | 291.08 | 0.8376 | -635.6 | -642.9 | |
| 2.58 | -31.00 | 2.30 | -31.00 | 19.04 | 103.65 | 55.21 | 290.86 | 0.8330 | -924.3 | 999999 | |
| 2.93 | -31.00 | 2.64 | -31.00 | 20.05 | 104.12 | 55.68 | 291.97 | 0.8388 | -524.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 13.58 | 101.28 | 52.84 | 284.61 | 0.8028 | 368.0 | 282.8 | |
| 0.00 | 1.12 | 0.00 | 0.97 | 18.05 | 102.80 | 54.36 | 289.84 | 0.8236 | -466.0 | -462.9 | |
| 0.00 | 6.02 | 0.00 | 5.22 | 18.59 | 102.61 | 54.18 | 290.51 | 0.8228 | -383.0 | -393.7 | |
| 0.00 | 3.27 | 0.00 | 2.85 | 20.02 | 102.56 | 54.12 | 292.25 | 0.8247 | -75.0 | -62.8 | |
| 0.00 | 1.46 | 0.00 | 1.26 | 19.17 | 102.14 | 53.70 | 291.30 | 0.8193 | -789.0 | -725.9 | |
| 0.00 | 1.55 | 0.00 | 1.37 | 21.01 | 102.91 | 54.48 | 293.35 | 0.8297 | 70.0 | -13.0 | |
| 2.15 | 10.93 | 1.93 | 9.79 | 22.13 | 103.38 | 54.94 | 294.57 | 0.8359 | -663.2 | -480.8 | |
| 0.00 | 6.97 | 0.00 | 6.07 | 20.53 | 102.49 | 54.05 | 292.86 | 0.8250 | -310.0 | -150.9 | |
| 0.00 | 0.95 | 0.00 | 0.80 | 18.91 | 101.49 | 53.05 | 291.13 | 0.8128 | 199.0 | 124.3 | |
| 0.00 | 2.06 | 0.00 | 1.83 | 22.06 | 102.83 | 54.39 | 294.61 | 0.8310 | -716.0 | -564.0 | |
| 0.00 | 1.89 | 0.00 | 1.64 | 21.11 | 102.20 | 53.76 | 293.62 | 0.8234 | 25.0 | -46.0 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 17.68 | 100.59 | 52.15 | 289.80 | 0.8019 | 261.0 | 236.5 | |
| 0.00 | 0.95 | 0.00 | 0.82 | 21.12 | 101.94 | 53.50 | 293.69 | 0.8211 | 351.0 | 236.7 | |
| 0.00 | 1.20 | 0.00 | 0.99 | 17.85 | 100.35 | 51.92 | 290.05 | 0.7998 | 424.0 | 371.0 | |
| 0.00 | 1.12 | 0.00 | 0.95 | 20.57 | 101.55 | 53.11 | 293.12 | 0.8164 | 317.0 | 219.2 | |
| 0.00 | 1.20 | 0.00 | 1.00 | 19.29 | 100.73 | 52.29 | 291.75 | 0.8061 | 459.0 | 377.4 | |
| 0.00 | 2.32 | 0.00 | 1.89 | 18.49 | 99.71 | 51.27 | 290.99 | 0.7947 | 653.0 | 532.3 | |
| 0.00 | 0.86 | 0.00 | 0.70 | 18.83 | 99.86 | 51.42 | 291.37 | 0.7968 | 525.0 | 477.1 | |
| 0.00 | 0.34 | 0.00 | 0.28 | 19.39 | 99.80 | 51.36 | 292.08 | 0.7974 | 586.0 | 554.5 | |
| 0.00 | 1.89 | 0.00 | 1.53 | 18.60 | 99.31 | 50.87 | 291.22 | 0.7909 | 532.0 | 515.5 | |
| 0.00 | 1.20 | 0.00 | 0.98 | 20.13 | 99.37 | 50.93 | 293.09 | 0.7948 | 610.0 | 574.1 | |
| 0.00 | 2.24 | 0.00 | 1.81 | 19.76 | 99.16 | 50.72 | 292.69 | 0.7918 | 728.0 | 626.3 | |
| 0.00 | 2.58 | 0.00 | 2.12 | 20.99 | 99.72 | 51.29 | 294.07 | 0.8001 | 619.0 | 515.9 | |
| 0.00 | 1.29 | 0.00 | 1.06 | 21.27 | 99.76 | 51.32 | 294.40 | 0.8011 | 624.0 | 533.9 | |
| 0.00 | 1.63 | 0.00 | 1.37 | 22.93 | 100.25 | 51.81 | 296.28 | 0.8096 | 368.0 | 302.7 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 18.31 | 97.34 | 48.90 | 291.32 | 0.7702 | 479.0 | 473.6 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 21.26 | 98.59 | 50.15 | 294.69 | 0.7898 | 540.0 | 482.0 | |
| 0.00 | 2.24 | 0.00 | 1.72 | 18.17 | 97.00 | 48.56 | 291.22 | 0.7664 | 304.0 | 335.6 | |
| 0.00 | 1.38 | 0.00 | 1.05 | 17.87 | 96.84 | 48.40 | 290.87 | 0.7640 | 615.0 | 533.2 | |
| 0.00 | 0.86 | 0.00 | 0.71 | 23.61 | 99.37 | 50.93 | 297.34 | 0.8031 | 468.0 | 382.6 | |
| 0.00 | 1.20 | 0.00 | 0.91 | 17.83 | 96.36 | 47.92 | 290.94 | 0.7588 | 683.0 | 612.4 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 17.81 | 96.02 | 47.58 | 291.00 | 0.7552 | 669.0 | 551.4 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 19.77 | 96.67 | 48.23 | 293.35 | 0.7668 | 364.0 | 363.3 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 22.49 | 97.74 | 49.30 | 296.46 | 0.7847 | 572.0 | 528.6 | |
| 0.00 | 1.72 | 0.00 | 1.36 | 23.67 | 96.94 | 48.50 | 298.17 | 0.7803 | 626.0 | 529.3 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 16.59 | 93.99 | 45.55 | 289.93 | 0.7301 | 475.0 | 354.3 | |
| 0.00 | 1.46 | 0.00 | 1.05 | 17.22 | 93.70 | 45.26 | 290.85 | 0.7283 | 676.0 | 555.5 | |
| 0.00 | 1.20 | 0.00 | 0.85 | 16.35 | 93.04 | 44.60 | 289.86 | 0.7187 | 653.0 | 568.4 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 16.49 | 92.73 | 44.29 | 290.13 | 0.7155 | 628.0 | 574.7 | |
| 0.00 | 1.89 | 0.00 | 1.34 | 16.88 | 92.85 | 44.41 | 290.63 | 0.7179 | 679.0 | 595.0 | |
| 0.00 | 1.98 | 0.00 | 1.40 | 17.21 | 92.42 | 43.98 | 291.20 | 0.7139 | 682.0 | 519.1 | |
| 3.10 | 3.96 | 2.19 | 2.80 | 18.57 | 92.33 | 43.89 | 293.09 | 0.7167 | -685.5 | -486.8 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 18.86 | 90.15 | 41.71 | 294.26 | 0.6929 | 298.0 | 365.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
