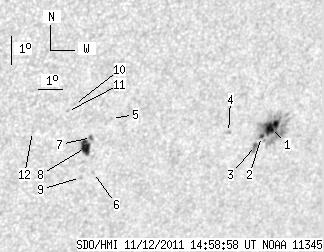

SDO HMI 2011-11-12 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.74 | 94.03 | 16.89 | 68.18 | -25.16 | 86.79 | 38.35 | 230.31 | 0.7306 | 1.1 | 116.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.58 | 63.75 | 7.85 | 47.42 | -25.04 | 88.68 | 40.24 | 231.77 | 0.7473 | 869.6 | 203.7 | |
| 1.29 | -1.00 | 0.96 | -1.00 | -25.33 | 88.36 | 39.92 | 231.24 | 0.7461 | 887.4 | 999999 | |
| 1.03 | 3.87 | 0.77 | 2.87 | -25.63 | 88.22 | 39.78 | 230.81 | 0.7467 | 767.5 | 552.7 | |
| 0.00 | 2.15 | 0.00 | 1.56 | -25.15 | 86.89 | 38.45 | 230.53 | 0.7315 | 676.0 | 636.7 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -24.51 | 81.93 | 33.49 | 227.75 | 0.6807 | -522.0 | -415.7 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -26.32 | 81.80 | 33.36 | 225.51 | 0.6932 | -510.0 | -341.3 | |
| 1.38 | 17.12 | 0.93 | 11.54 | -25.12 | 81.34 | 32.90 | 226.54 | 0.6798 | -712.5 | -499.1 | |
| 9.46 | -7.00 | 6.38 | -7.00 | -25.46 | 81.21 | 32.77 | 226.04 | 0.6812 | -835.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.00 | -26.48 | 81.33 | 32.89 | 224.96 | 0.6903 | -235.0 | -315.4 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -23.99 | 80.35 | 31.91 | 227.09 | 0.6617 | -478.0 | -380.0 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -24.22 | 80.15 | 31.71 | 226.65 | 0.6615 | -667.0 | -555.4 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -24.85 | 78.98 | 30.55 | 224.90 | 0.6557 | -512.0 | -457.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
