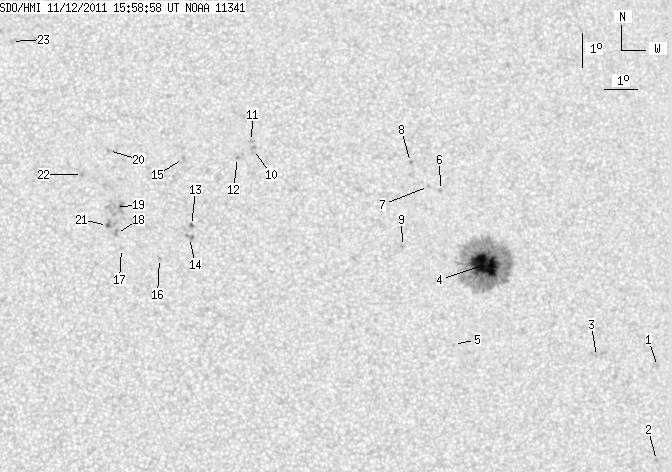

SDO HMI 2011-11-12 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.18 | 278.05 | 20.27 | 140.24 | 9.76 | 55.44 | 7.55 | 271.38 | 0.1871 | -653.0 | -257.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 6.35 | 62.40 | 14.51 | 282.93 | 0.2567 | -931.0 | -668.6 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 3.56 | 62.31 | 14.42 | 271.97 | 0.2498 | -875.0 | -725.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 6.67 | 60.54 | 12.65 | 286.00 | 0.2273 | -815.0 | -623.7 | |
| 38.63 | 220.06 | 19.50 | 111.11 | 9.44 | 57.20 | 9.31 | 304.58 | 0.1946 | -1466.4 | -465.5 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 7.07 | 56.20 | 8.31 | 295.54 | 0.1598 | -886.0 | -750.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.67 | 55.92 | 8.03 | 317.31 | 0.2026 | -980.0 | -763.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.79 | 55.55 | 7.66 | 319.03 | 0.2000 | -699.0 | -509.6 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 12.51 | 55.02 | 7.13 | 323.32 | 0.2039 | 918.0 | 720.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.00 | 54.72 | 6.83 | 315.53 | 0.1679 | -914.0 | -624.2 | |
| 0.00 | 4.13 | 0.00 | 2.08 | 12.93 | 50.24 | 2.35 | 346.72 | 0.1749 | 779.0 | 729.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 13.17 | 50.18 | 2.29 | 347.35 | 0.1787 | 1036.0 | 738.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.69 | 49.75 | 1.86 | 349.14 | 0.1691 | 1016.0 | 855.8 | |
| 0.43 | 1.38 | 0.21 | 0.69 | 10.65 | 48.35 | 0.46 | 356.52 | 0.1310 | -923.2 | -771.3 | |
| 0.00 | 3.44 | 0.00 | 1.72 | 10.29 | 48.29 | 0.40 | 356.83 | 0.1247 | -908.0 | -819.9 | |
| 0.00 | 2.32 | 0.00 | 1.17 | 12.66 | 48.11 | 0.22 | 358.69 | 0.1656 | 956.0 | 742.6 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 9.66 | 47.39 | -0.50 | 4.38 | 0.1139 | -915.0 | -551.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 9.96 | 46.24 | -1.65 | 13.47 | 0.1221 | 795.0 | 552.0 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 10.41 | 46.09 | -1.80 | 13.78 | 0.1303 | 974.0 | 851.9 | |
| 0.00 | 16.52 | 0.00 | 8.27 | 11.19 | 46.05 | -1.84 | 12.70 | 0.1436 | 1037.0 | 815.1 | |
| 0.00 | 2.32 | 0.00 | 1.17 | 12.90 | 45.83 | -2.06 | 11.72 | 0.1733 | 947.0 | 687.1 | |
| 1.12 | 7.23 | 0.56 | 3.61 | 10.65 | 45.82 | -2.07 | 15.28 | 0.1355 | 1152.5 | 863.1 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 12.17 | 45.05 | -2.84 | 17.21 | 0.1646 | 771.0 | 629.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 16.18 | 42.80 | -5.09 | 20.72 | 0.2421 | 811.0 | 645.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
