groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11339 122.82 724.76 122.21 706.75 19.06 106.06 58.73 290.35 0.8625 -469.4 -255.1


previous   or   next   observation for the same group / back to the solar disc

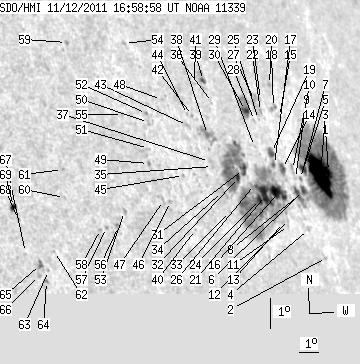

SDO HMI 2011-11-12 16:58:58 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 4.99 299.61 5.33 315.54 19.01 109.20 61.86 289.83 0.8882 208.4 -45.8
2 0.00 0.69 0.00 0.69 16.42 107.56 60.22 287.09 0.8730 -465.0 -413.0
3 44.90 -1.00 47.10 -1.00 18.95 108.62 61.29 289.82 0.8837 -769.6 999999
4 0.00 1.63 0.00 1.62 17.32 106.91 59.57 288.19 0.8685 -401.0 -408.4
5 5.33 -1.00 5.44 -1.00 19.18 107.66 60.33 290.21 0.8765 -739.4 999999
6 3.78 -1.00 3.81 -1.00 18.51 107.27 59.93 289.51 0.8726 -653.7 999999
7 1.20 1.63 1.22 1.65 18.88 107.30 59.96 289.93 0.8732 -569.9 -598.8
8 6.88 -1.00 6.85 -1.00 18.37 106.87 59.54 289.40 0.8693 -686.3 999999
9 0.00 1.63 0.00 1.64 18.90 106.99 59.65 289.98 0.8708 -570.0 -508.4
10 0.00 3.53 0.00 3.53 19.18 106.97 59.63 290.31 0.8709 -547.0 -454.0
11 0.00 0.86 0.00 0.83 17.49 105.79 58.45 288.54 0.8593 -460.0 -368.3
12 0.00 1.29 0.00 1.24 17.67 105.88 58.54 288.73 0.8603 -455.0 -338.5
13 0.00 1.63 0.00 1.56 17.60 105.54 58.20 288.69 0.8573 -305.0 -281.4
14 4.99 6.37 4.91 6.26 19.24 106.38 59.05 290.46 0.8663 -576.2 -453.6
15 0.00 0.77 0.00 0.78 20.83 107.19 59.85 292.16 0.8746 -384.0 -273.4
16 12.39 209.03 11.94 195.97 18.52 105.73 58.39 289.73 0.8600 -740.4 -493.4
17 1.12 -16.00 1.09 -16.00 19.38 105.98 58.64 290.69 0.8631 151.5 999999
18 0.00 4.04 0.00 4.08 21.12 107.00 59.66 292.52 0.8735 -569.0 -442.6
19 4.73 -16.00 4.62 -16.00 19.75 106.01 58.68 291.11 0.8639 -579.9 999999
20 0.00 2.24 0.00 2.28 21.84 107.23 59.90 293.29 0.8763 -125.0 -147.6
21 11.44 -16.00 10.79 -16.00 18.46 104.93 57.59 289.78 0.8531 -844.5 999999
22 0.00 1.72 0.00 1.70 21.04 106.13 58.79 292.56 0.8665 -504.0 -435.4
23 0.00 0.77 0.00 0.77 21.40 106.37 59.03 292.94 0.8689 -179.0 -147.4
24 3.70 -16.00 3.45 -16.00 18.36 104.52 57.18 289.72 0.8495 -960.3 999999
25 0.00 0.77 0.00 0.76 20.80 105.85 58.52 292.33 0.8639 -464.0 -444.7
26 0.34 -16.00 0.32 -16.00 18.82 104.48 57.14 290.28 0.8497 -578.2 999999
27 0.00 6.02 0.00 5.91 21.39 105.99 58.65 292.99 0.8658 -52.0 -46.7
28 0.00 1.38 0.00 1.33 20.78 105.60 58.26 292.35 0.8618 -608.0 -479.5
29 0.00 0.95 0.00 0.90 19.98 105.12 57.78 291.52 0.8568 -323.0 -326.0
30 4.47 18.06 4.31 17.39 21.11 105.26 57.92 292.79 0.8595 -816.1 -435.9
31 5.42 80.34 5.02 73.48 19.31 104.10 56.76 290.91 0.8471 -619.5 -671.0
32 2.15 -31.00 1.97 -31.00 19.08 103.69 56.35 290.71 0.8432 -928.8 999999
33 0.00 0.60 0.00 0.54 18.06 102.73 55.40 289.67 0.8332 -640.0 -574.0
34 0.00 6.28 0.00 5.59 18.69 102.59 55.26 290.44 0.8329 -422.0 -414.1
35 0.00 0.86 0.00 0.77 19.48 102.43 55.10 291.40 0.8326 -449.0 -442.7
36 0.00 0.60 0.00 0.55 21.44 103.51 56.17 293.50 0.8453 -453.0 -422.9
37 0.00 1.63 0.00 1.45 19.64 102.35 55.01 291.61 0.8321 -424.0 -443.8
38 0.00 14.88 0.00 13.37 20.47 102.68 55.34 292.53 0.8364 -337.0 -248.5
39 2.24 7.74 2.06 7.13 22.14 103.41 56.08 294.34 0.8457 -587.8 -495.1
40 0.00 0.52 0.00 0.44 17.60 100.64 53.30 289.48 0.8129 327.0 264.0
41 0.00 1.03 0.00 0.94 22.07 102.85 55.52 294.37 0.8408 -611.0 -596.2
42 0.00 1.20 0.00 1.07 21.09 102.18 54.84 293.36 0.8331 246.0 186.2
43 0.00 3.10 0.00 2.72 20.79 101.74 54.41 293.10 0.8287 256.0 147.0
44 0.00 0.77 0.00 0.69 21.13 101.93 54.59 293.47 0.8309 307.0 202.7
45 0.00 1.03 0.00 0.88 19.27 100.76 53.42 291.48 0.8169 371.0 330.3
46 0.00 1.20 0.00 1.00 18.50 99.73 52.39 290.77 0.8057 585.0 480.1
47 0.00 2.24 0.00 1.85 18.55 99.39 52.05 290.89 0.8025 580.0 504.8
48 0.00 1.20 0.00 1.04 21.65 100.79 53.45 294.34 0.8217 68.0 117.7
49 0.00 1.55 0.00 1.28 19.71 99.14 51.80 292.37 0.8023 544.0 504.9
50 0.00 1.72 0.00 1.45 20.97 99.75 52.41 293.77 0.8107 622.0 536.2
51 0.00 1.29 0.00 1.07 20.17 99.36 52.02 292.89 0.8053 610.0 588.0
52 0.00 1.03 0.00 0.87 21.25 99.78 52.45 294.10 0.8116 591.0 499.7
53 0.00 2.24 0.00 1.77 18.29 97.34 50.00 291.03 0.7815 473.0 454.2
54 0.00 1.46 0.00 1.25 23.47 99.81 52.48 296.76 0.8169 515.0 412.9
55 0.00 1.12 0.00 0.92 21.27 98.55 51.21 294.43 0.8001 374.0 408.9
56 0.00 2.41 0.00 1.88 17.85 96.87 49.54 290.58 0.7758 573.0 475.8
57 0.00 1.29 0.00 1.00 17.84 96.29 48.96 290.70 0.7698 605.0 519.3
58 0.00 1.46 0.00 1.12 17.79 95.99 48.65 290.71 0.7665 655.0 449.8
59 0.00 1.89 0.00 1.52 23.62 96.90 49.56 297.77 0.7904 661.0 471.9
60 0.00 1.12 0.00 0.84 18.83 94.69 47.35 292.39 0.7552 544.0 538.7
61 0.00 0.77 0.00 0.59 19.69 94.92 47.59 293.44 0.7599 467.0 456.7
62 0.00 0.86 0.00 0.63 17.20 93.66 46.32 290.54 0.7401 682.0 589.4
63 0.00 0.77 0.00 0.56 16.64 93.21 45.87 289.90 0.7338 552.0 443.9
64 0.00 1.98 0.00 1.43 16.31 93.02 45.68 289.51 0.7309 733.0 575.4
65 0.00 3.53 0.00 2.55 16.83 92.92 45.58 290.24 0.7309 757.0 618.4
66 0.00 2.58 0.00 1.86 16.50 92.73 45.39 289.85 0.7280 443.0 551.6
67 0.00 0.52 0.00 0.37 17.22 92.37 45.03 290.92 0.7258 513.0 502.0
68 0.00 1.20 0.00 0.87 18.24 92.39 45.05 292.28 0.7288 -298.0 -276.4
69 2.75 4.13 1.98 2.98 18.65 92.30 44.97 292.85 0.7290 -652.2 -522.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
