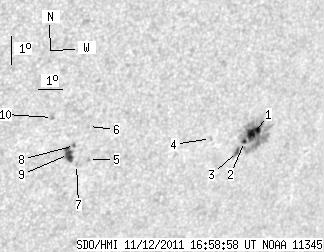

SDO HMI 2011-11-12 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.42 | 86.61 | 17.70 | 64.09 | -25.12 | 87.12 | 39.78 | 231.30 | 0.7435 | 74.6 | 150.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.32 | 62.45 | 7.79 | 47.21 | -25.02 | 88.65 | 41.31 | 232.44 | 0.7569 | 879.1 | 213.4 | |
| 1.20 | -1.00 | 0.91 | -1.00 | -25.28 | 88.36 | 41.02 | 231.98 | 0.7557 | 879.4 | 999999 | |
| 2.67 | 4.47 | 2.01 | 3.37 | -25.61 | 88.19 | 40.85 | 231.50 | 0.7561 | 660.8 | 592.7 | |
| 0.00 | 1.55 | 0.00 | 1.14 | -25.12 | 86.83 | 39.49 | 231.23 | 0.7409 | 715.0 | 615.7 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -25.65 | 81.99 | 34.65 | 227.28 | 0.7000 | -508.0 | -465.2 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -24.53 | 81.63 | 34.29 | 228.33 | 0.6885 | -664.0 | -524.9 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -25.81 | 81.56 | 34.22 | 226.77 | 0.6972 | -523.0 | -354.8 | |
| 1.46 | 1.63 | 1.00 | 1.11 | -25.16 | 81.27 | 33.93 | 227.31 | 0.6897 | -659.4 | -569.0 | |
| 8.77 | 10.67 | 5.99 | 7.28 | -25.46 | 81.13 | 33.79 | 226.85 | 0.6906 | -824.0 | -594.8 | |
| 0.00 | 2.06 | 0.00 | 1.38 | -24.18 | 80.11 | 32.77 | 227.56 | 0.6714 | -708.0 | -572.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
