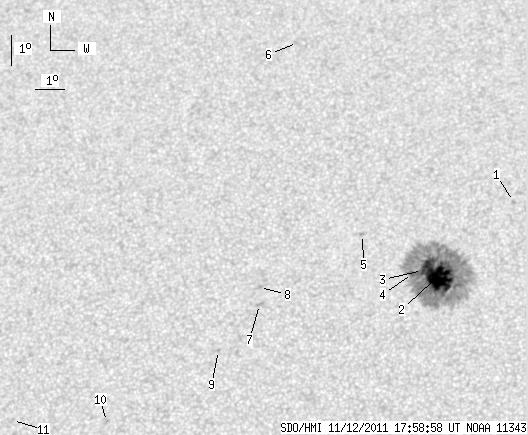

SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.46 | 327.56 | 27.04 | 179.19 | 27.97 | 43.35 | -3.43 | 7.19 | 0.4254 | -933.2 | -386.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.86 | 30.45 | 46.21 | -0.57 | 1.08 | 0.4604 | -723.0 | -615.5 | |
| 45.68 | 313.28 | 24.96 | 171.27 | 27.97 | 43.67 | -3.11 | 6.52 | 0.4241 | -1315.0 | -417.9 | |
| 1.29 | -2.00 | 0.71 | -2.00 | 28.17 | 43.16 | -3.62 | 7.51 | 0.4281 | -866.9 | 999999 | |
| 2.49 | -2.00 | 1.37 | -2.00 | 28.07 | 42.83 | -3.96 | 8.23 | 0.4273 | -759.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 29.34 | 41.07 | -5.71 | 11.12 | 0.4517 | -700.0 | -615.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 35.88 | 38.24 | -8.55 | 12.56 | 0.5563 | -731.0 | -432.9 | |
| 0.00 | 2.67 | 0.00 | 1.46 | 27.03 | 37.74 | -9.05 | 19.08 | 0.4304 | 881.0 | 667.0 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 27.58 | 37.69 | -9.09 | 18.70 | 0.4388 | 881.0 | 602.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 25.53 | 36.49 | -10.30 | 22.93 | 0.4157 | 878.0 | 632.8 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 23.23 | 32.98 | -13.81 | 32.48 | 0.4101 | 733.0 | 620.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 23.22 | 29.83 | -16.95 | 37.83 | 0.4387 | 558.0 | 380.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
