SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.20 | 87.73 | 18.47 | 65.28 | -25.10 | 86.91 | 40.13 | 231.53 | 0.7465 | 144.5 | 103.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

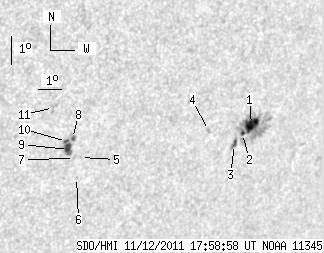

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.87 | 60.64 | 9.03 | 46.25 | -24.97 | 88.61 | 41.82 | 232.80 | 0.7613 | 830.9 | 176.5 | |
| 1.46 | -1.00 | 1.11 | -1.00 | -25.26 | 88.33 | 41.55 | 232.30 | 0.7604 | 840.3 | 999999 | |
| 2.41 | 4.90 | 1.83 | 3.72 | -25.63 | 88.13 | 41.35 | 231.77 | 0.7606 | 654.2 | 673.1 | |
| 0.00 | 1.89 | 0.00 | 1.40 | -25.10 | 86.79 | 40.01 | 231.57 | 0.7455 | 657.0 | 476.1 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -25.83 | 81.74 | 34.96 | 227.30 | 0.7041 | -397.0 | -387.1 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -26.51 | 81.82 | 35.03 | 226.57 | 0.7096 | -415.0 | -387.5 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -25.86 | 81.51 | 34.72 | 227.10 | 0.7021 | -499.0 | -371.2 | |
| 0.86 | 3.53 | 0.59 | 2.42 | -25.17 | 81.20 | 34.42 | 227.67 | 0.6943 | -680.5 | -436.0 | |
| 7.14 | 10.41 | 4.91 | 7.15 | -25.54 | 81.16 | 34.38 | 227.20 | 0.6967 | -772.5 | -642.8 | |
| 1.46 | -9.00 | 1.00 | -9.00 | -25.27 | 80.99 | 34.21 | 227.40 | 0.6931 | -746.8 | 999999 | |
| 0.00 | 3.27 | 0.00 | 2.19 | -24.10 | 80.12 | 33.34 | 228.11 | 0.6762 | -647.0 | -479.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
