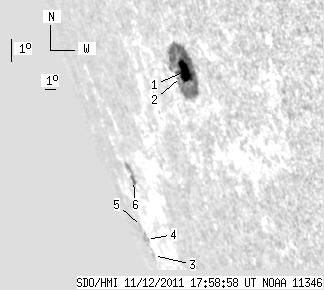

SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.30 | 108.73 | 24.96 | 199.20 | -19.60 | 334.71 | -72.08 | 111.45 | 0.9586 | 350.6 | 127.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.64 | 90.92 | 18.43 | 133.17 | -17.81 | 338.80 | -67.99 | 110.22 | 0.9421 | 575.2 | 155.6 | |
| 1.03 | -1.00 | 1.54 | -1.00 | -17.99 | 338.40 | -68.39 | 110.34 | 0.9445 | -101.8 | 999999 | |
| 0.00 | 2.24 | 0.00 | 9.65 | -24.46 | 325.51 | -81.28 | 115.08 | 0.9939 | 231.0 | 196.3 | |
| 0.00 | 5.85 | 0.00 | 24.91 | -23.93 | 325.55 | -81.24 | 114.56 | 0.9937 | 241.0 | 204.2 | |
| 0.00 | 1.63 | 0.00 | 6.76 | -23.50 | 325.73 | -81.06 | 114.14 | 0.9933 | 55.0 | 99.1 | |
| 1.63 | 8.09 | 4.99 | 24.71 | -21.87 | 328.13 | -78.66 | 112.78 | 0.9876 | -234.2 | -155.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
