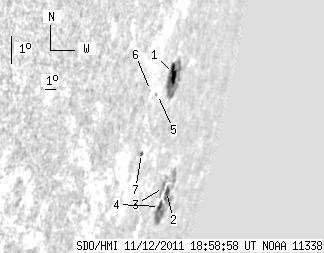

SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.10 | 77.93 | 24.23 | 175.96 | -13.37 | 122.13 | 75.90 | 255.51 | 0.9753 | 379.0 | 20.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.42 | 34.15 | 10.71 | 68.61 | -11.05 | 120.82 | 74.59 | 257.73 | 0.9694 | 461.3 | 6.6 | |
| 2.15 | 17.63 | 5.34 | 45.61 | -14.82 | 123.44 | 77.21 | 254.18 | 0.9808 | 329.1 | -164.8 | |
| 0.00 | 7.40 | 0.00 | 17.41 | -14.66 | 122.84 | 76.61 | 254.27 | 0.9787 | 573.0 | 463.1 | |
| 3.01 | 15.91 | 7.24 | 39.20 | -15.26 | 122.98 | 76.75 | 253.68 | 0.9794 | 347.6 | 23.3 | |
| 0.00 | 0.77 | 0.00 | 1.41 | -11.62 | 119.44 | 73.21 | 256.99 | 0.9637 | 281.0 | 292.9 | |
| 0.00 | 0.52 | 0.00 | 0.90 | -11.45 | 118.60 | 72.37 | 257.06 | 0.9597 | 464.0 | 410.2 | |
| 0.52 | 1.55 | 0.94 | 2.82 | -13.41 | 119.07 | 72.84 | 255.10 | 0.9630 | -224.5 | -144.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
