SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.65 | 311.74 | 26.03 | 170.37 | 28.02 | 43.68 | -2.56 | 5.36 | 0.4241 | -1146.8 | -427.4 | |
|
previous
or next observation for the same group /

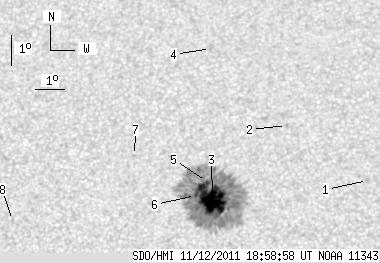

back to the solar disc SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.94 | 28.60 | 48.91 | 2.68 | 354.55 | 0.4332 | -739.0 | -671.8 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 30.42 | 46.17 | -0.06 | 0.12 | 0.4599 | -781.0 | -655.1 | |
| 45.93 | 306.05 | 25.09 | 167.23 | 27.97 | 43.69 | -2.55 | 5.34 | 0.4232 | -1308.0 | -427.0 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 33.02 | 43.48 | -2.75 | 4.62 | 0.5015 | -785.0 | -680.2 | |
| 0.60 | -3.00 | 0.33 | -3.00 | 28.56 | 43.47 | -2.76 | 5.64 | 0.4328 | -676.6 | 999999 | |
| 1.12 | -3.00 | 0.61 | -3.00 | 28.10 | 43.11 | -3.12 | 6.50 | 0.4262 | -878.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 29.41 | 40.99 | -5.24 | 10.20 | 0.4514 | -812.0 | -677.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 27.25 | 36.99 | -9.24 | 19.25 | 0.4348 | 638.0 | 481.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
