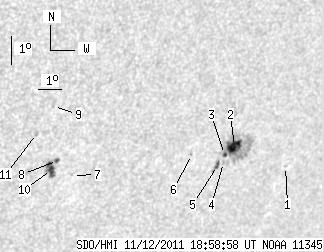

SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.29 | 83.43 | 18.75 | 62.80 | -25.08 | 87.14 | 40.90 | 232.03 | 0.7533 | 160.0 | 78.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.77 | -25.74 | 91.30 | 45.07 | 233.68 | 0.7937 | -458.0 | -319.9 | |
| 12.47 | 58.23 | 9.57 | 44.79 | -24.96 | 88.62 | 42.39 | 233.13 | 0.7663 | 795.9 | 161.0 | |
| 1.55 | -2.00 | 1.19 | -2.00 | -25.22 | 88.28 | 42.05 | 232.65 | 0.7646 | 856.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -25.49 | 88.36 | 42.12 | 232.38 | 0.7667 | 407.0 | 312.7 | |
| 2.58 | 4.73 | 1.98 | 3.62 | -25.58 | 88.13 | 41.90 | 232.14 | 0.7652 | 649.8 | 539.8 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -25.16 | 86.81 | 40.58 | 231.85 | 0.7511 | 785.0 | 617.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -25.69 | 82.03 | 35.79 | 228.08 | 0.7107 | -617.0 | -548.6 | |
| 1.38 | 13.59 | 0.95 | 9.40 | -25.16 | 81.24 | 35.01 | 228.13 | 0.6997 | -662.9 | -610.7 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -23.34 | 80.51 | 34.28 | 229.77 | 0.6797 | -700.0 | -536.2 | |
| 7.31 | -8.00 | 5.06 | -8.00 | -25.46 | 81.10 | 34.86 | 227.67 | 0.7005 | -806.7 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.22 | -24.22 | 80.11 | 33.87 | 228.39 | 0.6822 | -668.0 | -585.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
