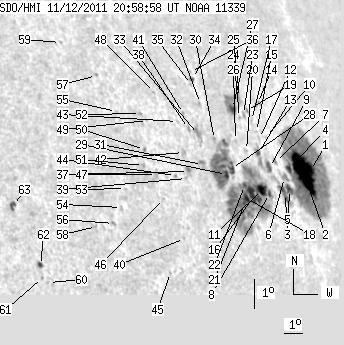

SDO HMI 2011-11-12 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.81 | 651.03 | 121.87 | 679.17 | 19.02 | 106.14 | 61.01 | 289.98 | 0.8809 | -449.4 | -267.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.11 | 281.13 | 7.00 | 316.93 | 19.00 | 109.07 | 63.95 | 289.59 | 0.9034 | 201.5 | -62.9 | |
| 40.78 | -1.00 | 45.82 | -1.00 | 18.97 | 108.55 | 63.42 | 289.60 | 0.8996 | -679.6 | 999999 | |
| 5.08 | -1.00 | 5.47 | -1.00 | 18.50 | 107.27 | 62.14 | 289.22 | 0.8898 | -591.6 | 999999 | |
| 4.04 | -1.00 | 4.42 | -1.00 | 19.14 | 107.62 | 62.49 | 289.90 | 0.8930 | -742.3 | 999999 | |
| 6.97 | -1.00 | 7.40 | -1.00 | 18.39 | 106.86 | 61.74 | 289.15 | 0.8867 | -641.0 | 999999 | |
| 0.00 | 5.33 | 0.00 | 5.73 | 18.88 | 107.17 | 62.05 | 289.66 | 0.8895 | -633.0 | -582.4 | |
| 1.20 | 1.89 | 1.29 | 2.02 | 19.39 | 106.90 | 61.78 | 290.26 | 0.8879 | -489.9 | -528.0 | |
| 2.06 | 176.70 | 2.13 | 175.25 | 18.44 | 105.91 | 60.78 | 289.32 | 0.8793 | -583.3 | -503.7 | |
| 4.22 | 17.89 | 4.43 | 18.65 | 19.22 | 106.40 | 61.27 | 290.14 | 0.8839 | -566.0 | -235.8 | |
| 0.00 | 0.95 | 0.00 | 1.01 | 20.15 | 106.74 | 61.62 | 291.14 | 0.8875 | -327.0 | -327.5 | |
| 6.97 | -8.00 | 7.11 | -8.00 | 18.58 | 105.54 | 60.42 | 289.52 | 0.8766 | -754.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.90 | 20.14 | 106.34 | 61.21 | 291.18 | 0.8844 | -449.0 | -386.8 | |
| 2.84 | -9.00 | 2.95 | -9.00 | 19.71 | 105.99 | 60.86 | 290.75 | 0.8813 | -556.8 | 999999 | |
| 0.00 | 3.10 | 0.00 | 3.34 | 21.21 | 106.95 | 61.83 | 292.29 | 0.8901 | -688.0 | -438.9 | |
| 0.00 | 0.60 | 0.00 | 0.63 | 20.36 | 106.29 | 61.16 | 291.43 | 0.8842 | -357.0 | -278.4 | |
| 10.84 | -8.00 | 10.86 | -8.00 | 18.42 | 104.94 | 59.82 | 289.42 | 0.8716 | -805.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.99 | 20.71 | 106.20 | 61.07 | 291.84 | 0.8839 | -508.0 | -471.9 | |
| 3.36 | -8.00 | 3.31 | -8.00 | 18.35 | 104.41 | 59.28 | 289.42 | 0.8672 | -925.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.72 | 21.03 | 106.09 | 60.96 | 292.22 | 0.8835 | -335.0 | -345.4 | |
| 0.00 | 1.12 | 0.00 | 1.14 | 19.81 | 105.28 | 60.15 | 290.96 | 0.8758 | -499.0 | -441.7 | |
| 0.86 | -8.00 | 0.84 | -8.00 | 18.20 | 104.20 | 59.07 | 289.28 | 0.8654 | -993.8 | 999999 | |
| 1.81 | -8.00 | 1.79 | -8.00 | 18.75 | 104.51 | 59.38 | 289.86 | 0.8685 | -700.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 2.06 | 20.91 | 105.81 | 60.69 | 292.13 | 0.8812 | -466.0 | -458.8 | |
| 0.00 | 1.03 | 0.00 | 1.06 | 20.83 | 105.50 | 60.37 | 292.09 | 0.8787 | -520.0 | -449.8 | |
| 0.00 | 4.73 | 0.00 | 4.94 | 21.45 | 105.92 | 60.79 | 292.71 | 0.8827 | -79.0 | -5.0 | |
| 0.00 | 1.20 | 0.00 | 1.21 | 20.14 | 104.79 | 59.66 | 291.41 | 0.8724 | -376.0 | -321.4 | |
| 3.36 | 17.89 | 3.44 | 18.31 | 21.13 | 105.25 | 60.12 | 292.46 | 0.8771 | -816.6 | -431.8 | |
| 4.99 | 70.03 | 4.90 | 67.87 | 19.30 | 104.03 | 58.90 | 290.56 | 0.8652 | -602.7 | -652.1 | |
| 3.01 | -28.00 | 2.92 | -28.00 | 19.13 | 103.63 | 58.50 | 290.43 | 0.8617 | -880.9 | 999999 | |
| 0.00 | 2.32 | 0.00 | 2.26 | 20.23 | 103.54 | 58.42 | 291.71 | 0.8624 | -588.0 | -563.2 | |
| 0.00 | 4.47 | 0.00 | 4.20 | 19.50 | 102.40 | 57.28 | 291.05 | 0.8518 | -510.0 | -536.1 | |
| 0.00 | 0.95 | 0.00 | 0.92 | 21.37 | 103.40 | 58.27 | 293.04 | 0.8628 | -526.0 | -486.5 | |
| 0.00 | 9.20 | 0.00 | 8.75 | 20.43 | 102.70 | 57.57 | 292.07 | 0.8556 | -417.0 | -221.0 | |
| 1.38 | 2.24 | 1.34 | 2.18 | 22.16 | 103.42 | 58.30 | 293.94 | 0.8642 | -521.8 | -516.4 | |
| 0.00 | 1.03 | 0.00 | 1.00 | 21.98 | 103.24 | 58.12 | 293.77 | 0.8624 | -649.0 | -534.4 | |
| 0.00 | 1.03 | 0.00 | 1.01 | 22.38 | 103.45 | 58.32 | 294.19 | 0.8647 | -395.0 | -367.0 | |
| 0.00 | 3.79 | 0.00 | 3.47 | 19.32 | 101.50 | 56.37 | 291.00 | 0.8437 | -357.0 | -314.3 | |
| 0.00 | 1.98 | 0.00 | 1.86 | 20.64 | 102.23 | 57.10 | 292.40 | 0.8520 | 270.0 | 140.4 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 19.11 | 101.27 | 56.15 | 290.79 | 0.8415 | 153.0 | 77.5 | |
| 0.00 | 0.86 | 0.00 | 0.76 | 17.30 | 100.28 | 55.15 | 288.80 | 0.8299 | 527.0 | 406.2 | |
| 0.00 | 1.29 | 0.00 | 1.21 | 21.11 | 102.22 | 57.09 | 292.95 | 0.8526 | 146.0 | 50.4 | |
| 0.00 | 3.44 | 0.00 | 3.17 | 19.91 | 101.53 | 56.40 | 291.69 | 0.8449 | -144.0 | -170.2 | |
| 0.00 | 0.77 | 0.00 | 0.72 | 20.88 | 101.73 | 56.60 | 292.77 | 0.8481 | 275.0 | 186.4 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 19.23 | 100.71 | 55.59 | 291.03 | 0.8367 | 451.0 | 369.1 | |
| 0.00 | 1.12 | 0.00 | 0.96 | 16.30 | 99.10 | 53.98 | 287.79 | 0.8175 | 435.0 | 331.5 | |
| 0.00 | 1.03 | 0.00 | 0.90 | 18.56 | 99.72 | 54.59 | 290.41 | 0.8266 | 517.0 | 435.1 | |
| 0.00 | 2.24 | 0.00 | 1.96 | 19.31 | 99.70 | 54.58 | 291.31 | 0.8277 | 646.0 | 500.5 | |
| 0.00 | 0.52 | 0.00 | 0.47 | 21.83 | 100.96 | 55.83 | 294.03 | 0.8431 | 139.0 | 97.0 | |
| 0.00 | 0.77 | 0.00 | 0.69 | 20.98 | 100.08 | 54.96 | 293.22 | 0.8340 | 434.0 | 370.4 | |
| 0.00 | 1.20 | 0.00 | 1.05 | 20.10 | 99.45 | 54.32 | 292.31 | 0.8267 | 695.0 | 622.4 | |
| 0.00 | 1.72 | 0.00 | 1.49 | 19.61 | 99.15 | 54.02 | 291.78 | 0.8231 | 678.0 | 595.2 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 21.21 | 99.82 | 54.69 | 293.55 | 0.8321 | 580.0 | 461.7 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 18.95 | 97.88 | 52.75 | 291.24 | 0.8100 | 410.0 | 360.2 | |
| 0.00 | 1.20 | 0.00 | 1.00 | 18.38 | 97.42 | 52.29 | 290.64 | 0.8045 | 513.0 | 416.1 | |
| 0.00 | 1.12 | 0.00 | 0.97 | 21.33 | 98.57 | 53.45 | 293.97 | 0.8211 | 383.0 | 361.4 | |
| 0.00 | 1.89 | 0.00 | 1.55 | 17.91 | 96.81 | 51.69 | 290.19 | 0.7977 | 589.0 | 446.9 | |
| 0.00 | 1.12 | 0.00 | 0.96 | 22.49 | 98.13 | 53.00 | 295.46 | 0.8195 | 491.0 | 494.1 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 17.85 | 95.94 | 50.81 | 290.30 | 0.7889 | 598.0 | 485.7 | |
| 0.00 | 1.03 | 0.00 | 0.87 | 23.60 | 96.83 | 51.70 | 297.12 | 0.8103 | 465.0 | 477.7 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 16.25 | 93.06 | 47.93 | 288.89 | 0.7556 | 729.0 | 567.4 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 16.41 | 92.84 | 47.71 | 289.15 | 0.7535 | 706.0 | 550.8 | |
| 1.89 | 2.41 | 1.42 | 1.81 | 16.78 | 92.87 | 47.74 | 289.63 | 0.7546 | 682.9 | 562.7 | |
| 4.04 | 4.30 | 3.03 | 3.22 | 18.65 | 92.27 | 47.15 | 292.22 | 0.7526 | -579.8 | -449.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
