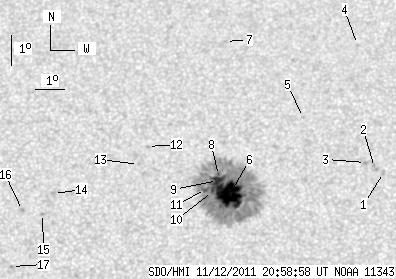

SDO HMI 2011-11-12 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.42 | 327.95 | 27.52 | 179.23 | 28.05 | 43.55 | -1.58 | 3.31 | 0.4238 | -937.4 | -399.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.14 | 28.65 | 48.86 | 3.73 | 352.45 | 0.4361 | -690.0 | -610.2 | |
| 0.00 | 2.32 | 0.00 | 1.28 | 28.82 | 48.56 | 3.43 | 353.10 | 0.4381 | -679.0 | -682.3 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 28.98 | 48.26 | 3.13 | 353.74 | 0.4401 | -787.0 | -593.0 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 32.95 | 48.11 | 2.98 | 354.98 | 0.5008 | -640.0 | -519.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 30.48 | 46.17 | 1.04 | 358.05 | 0.4612 | -661.0 | -533.2 | |
| 40.26 | 311.76 | 21.97 | 170.27 | 27.93 | 43.66 | -1.47 | 3.09 | 0.4215 | -1355.7 | -409.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 33.05 | 43.44 | -1.69 | 2.84 | 0.5010 | -736.0 | -633.8 | |
| 0.95 | -6.00 | 0.52 | -6.00 | 28.56 | 43.28 | -1.85 | 3.78 | 0.4317 | -626.5 | 999999 | |
| 5.25 | -6.00 | 2.87 | -6.00 | 28.39 | 43.25 | -1.88 | 3.87 | 0.4291 | -877.6 | 999999 | |
| 1.38 | -6.00 | 0.75 | -6.00 | 28.03 | 43.09 | -2.04 | 4.28 | 0.4236 | -953.6 | 999999 | |
| 2.58 | -6.00 | 1.41 | -6.00 | 28.10 | 42.85 | -2.28 | 4.75 | 0.4249 | -788.7 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 29.51 | 40.84 | -4.29 | 8.34 | 0.4506 | -831.0 | -655.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 28.91 | 40.56 | -4.57 | 9.12 | 0.4420 | -643.0 | -535.2 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 27.94 | 37.73 | -7.40 | 15.17 | 0.4366 | 745.0 | 647.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 27.29 | 37.40 | -7.72 | 16.27 | 0.4281 | 765.0 | 545.1 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 27.38 | 36.72 | -8.41 | 17.54 | 0.4326 | 688.0 | 584.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 25.57 | 36.49 | -8.64 | 19.54 | 0.4069 | 881.0 | 675.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
