SDO HMI 2011-11-12 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.36 | 17.80 | 2.93 | 15.72 | 8.36 | 348.61 | -55.96 | 82.04 | 0.8300 | 93.5 | 184.1 | |
|
previous
or next observation for the same group /

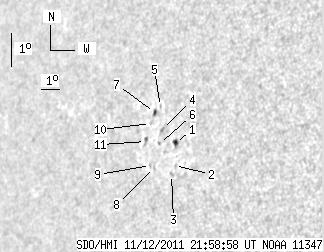

back to the solar disc SDO HMI 2011-11-12 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 3.36 | 2.08 | 2.90 | 8.35 | 349.44 | -55.14 | 82.02 | 0.8220 | -346.7 | -219.5 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 7.66 | 349.52 | -55.05 | 82.85 | 0.8209 | -317.0 | -331.4 | |
| 0.00 | 1.98 | 0.00 | 1.71 | 7.39 | 349.42 | -55.16 | 83.19 | 0.8219 | -364.0 | -266.1 | |
| 0.00 | 1.63 | 0.00 | 1.44 | 8.70 | 348.67 | -55.91 | 81.62 | 0.8296 | 519.0 | 454.4 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 9.38 | 348.40 | -56.18 | 80.82 | 0.8325 | -366.0 | -253.6 | |
| 0.00 | 1.03 | 0.00 | 0.91 | 8.28 | 348.60 | -55.98 | 82.13 | 0.8301 | 523.0 | 494.5 | |
| 0.95 | 2.32 | 0.85 | 2.08 | 9.19 | 348.12 | -56.46 | 81.06 | 0.8351 | -246.9 | -0.8 | |
| 0.00 | 1.12 | 0.00 | 0.99 | 7.56 | 348.48 | -56.10 | 83.01 | 0.8311 | 504.0 | 453.2 | |
| 0.00 | 0.77 | 0.00 | 0.69 | 7.61 | 348.25 | -56.32 | 82.96 | 0.8333 | 570.0 | 475.0 | |
| 0.00 | 1.03 | 0.00 | 0.93 | 8.85 | 347.98 | -56.60 | 81.47 | 0.8363 | 541.0 | 453.3 | |
| 0.00 | 3.01 | 0.00 | 2.71 | 8.30 | 347.83 | -56.75 | 82.13 | 0.8375 | 436.0 | 395.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
