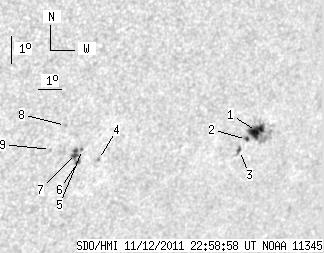

SDO HMI 2011-11-12 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.64 | 49.99 | 15.90 | 38.70 | -25.07 | 86.65 | 42.63 | 233.04 | 0.7686 | 140.2 | 46.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.27 | 33.47 | 8.96 | 26.68 | -24.90 | 88.51 | 44.49 | 234.35 | 0.7846 | 763.0 | 172.1 | |
| 1.63 | -1.00 | 1.30 | -1.00 | -25.15 | 88.17 | 44.15 | 233.88 | 0.7828 | 760.5 | 999999 | |
| 1.63 | 3.70 | 1.30 | 2.93 | -25.52 | 88.02 | 43.99 | 233.39 | 0.7832 | 591.9 | 524.5 | |
| 0.00 | 1.38 | 0.00 | 0.99 | -25.58 | 81.88 | 37.86 | 229.65 | 0.7287 | -607.0 | -468.6 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -25.22 | 81.09 | 37.06 | 229.54 | 0.7190 | -678.0 | -630.0 | |
| 1.72 | 8.69 | 1.23 | 6.17 | -25.65 | 81.04 | 37.02 | 228.99 | 0.7215 | -567.0 | -634.0 | |
| 4.39 | -6.00 | 3.11 | -6.00 | -25.34 | 80.84 | 36.82 | 229.22 | 0.7176 | -870.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -24.38 | 80.10 | 36.08 | 229.84 | 0.7042 | -655.0 | -512.5 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -25.17 | 79.76 | 35.74 | 228.66 | 0.7065 | -460.0 | -422.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
