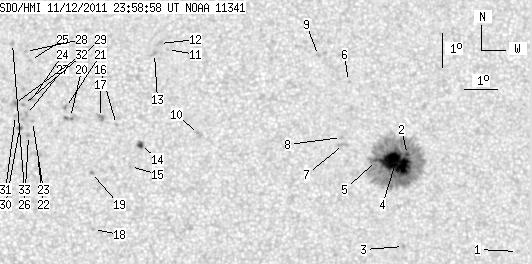

SDO HMI 2011-11-12 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.59 | 284.28 | 21.78 | 145.26 | 9.74 | 55.50 | 12.02 | 302.11 | 0.2422 | -362.8 | -273.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.76 | 6.73 | 60.88 | 17.41 | 282.33 | 0.3056 | -810.0 | -562.6 | |
| 1.29 | 222.70 | 0.66 | 114.22 | 9.66 | 57.58 | 14.11 | 295.61 | 0.2677 | -829.4 | -424.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 6.93 | 57.35 | 13.88 | 285.83 | 0.2487 | -779.0 | -599.0 | |
| 36.14 | -2.00 | 18.53 | -2.00 | 9.43 | 57.20 | 13.72 | 295.38 | 0.2602 | -1405.3 | 999999 | |
| 1.03 | -2.00 | 0.53 | -2.00 | 9.50 | 56.61 | 13.14 | 296.55 | 0.2518 | -975.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 11.87 | 55.85 | 12.38 | 306.10 | 0.2608 | -632.0 | -438.9 | |
| 0.00 | 4.13 | 0.00 | 2.11 | 9.99 | 55.61 | 12.14 | 300.15 | 0.2406 | -832.0 | -636.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.20 | 55.56 | 12.09 | 301.02 | 0.2416 | -801.0 | -578.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 12.66 | 54.95 | 11.48 | 310.59 | 0.2569 | 700.0 | 457.5 | |
| 0.00 | 3.44 | 0.00 | 1.73 | 10.33 | 51.19 | 7.72 | 313.54 | 0.1830 | -748.0 | -709.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.88 | 50.31 | 6.84 | 325.60 | 0.2064 | 738.0 | 603.3 | |
| 0.00 | 2.84 | 0.00 | 1.44 | 13.06 | 50.07 | 6.60 | 327.04 | 0.2066 | 872.0 | 642.5 | |
| 0.00 | 2.93 | 0.00 | 1.48 | 12.76 | 49.91 | 6.44 | 326.86 | 0.2009 | 946.0 | 794.9 | |
| 2.58 | 3.53 | 1.29 | 1.77 | 10.04 | 49.42 | 5.95 | 319.69 | 0.1585 | -976.9 | -824.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.38 | 49.11 | 5.64 | 318.35 | 0.1465 | -720.0 | -564.8 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.64 | 48.70 | 5.23 | 325.55 | 0.1592 | -1013.0 | -683.6 | |
| 0.00 | 4.73 | 0.00 | 2.37 | 10.85 | 48.22 | 4.75 | 328.79 | 0.1578 | -987.0 | -786.9 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.51 | 47.97 | 4.50 | 314.48 | 0.1095 | 788.0 | 594.2 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 9.21 | 47.93 | 4.46 | 324.07 | 0.1313 | 966.0 | 689.2 | |
| 0.00 | 4.65 | 0.00 | 2.33 | 10.85 | 47.31 | 3.84 | 333.88 | 0.1503 | 488.0 | 621.5 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 11.15 | 47.17 | 3.70 | 335.61 | 0.1539 | 1039.0 | 740.0 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 9.78 | 46.31 | 2.84 | 337.14 | 0.1261 | 834.0 | 712.4 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.74 | 46.16 | 2.69 | 340.75 | 0.1407 | 790.0 | 578.6 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 11.40 | 46.14 | 2.67 | 342.36 | 0.1514 | 922.0 | 750.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.57 | 46.12 | 2.65 | 344.59 | 0.1707 | 860.0 | 640.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.32 | 46.04 | 2.57 | 340.56 | 0.1332 | 1083.0 | 860.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 10.95 | 45.98 | 2.51 | 342.41 | 0.1432 | 912.0 | 760.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.84 | 45.97 | 2.50 | 345.82 | 0.1746 | 976.0 | 741.1 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 11.25 | 45.90 | 2.43 | 343.60 | 0.1477 | 1034.0 | 773.2 | |
| 1.55 | 2.15 | 0.77 | 1.08 | 10.53 | 45.77 | 2.30 | 342.95 | 0.1351 | 943.9 | 875.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.92 | 45.65 | 2.18 | 344.56 | 0.1411 | 912.0 | 647.0 | |
| 0.00 | 3.53 | 0.00 | 1.77 | 11.28 | 45.62 | 2.15 | 345.40 | 0.1469 | 1100.0 | 851.1 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 13.08 | 45.58 | 2.11 | 348.28 | 0.1771 | 941.0 | 668.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
