group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11341	39.93	252.44	20.51	129.60	9.71	55.68	13.31	299.27	0.2604	-247.3	-303.0

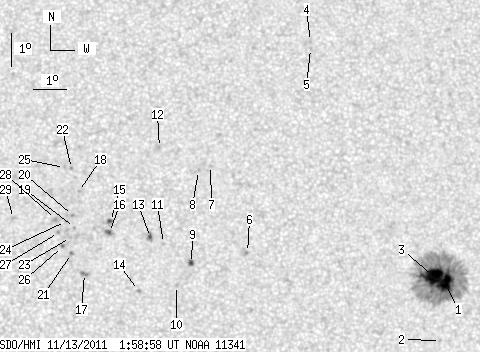

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-13 01:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	13.25	210.09	6.84	108.29	9.28	57.43	15.06	293.03	0.2798	-1330.9	-455.5
2	0.00	0.95	0.00	0.49	7.58	57.20	14.83	287.39	0.2671	-760.0	-549.1
3	20.83	-1.00	10.73	-1.00	9.49	57.06	14.69	294.23	0.2756	-1455.6	999999
4	0.00	1.46	0.00	0.76	16.62	53.59	11.22	321.48	0.3008	763.0	566.9
5	0.00	1.20	0.00	0.62	16.40	53.58	11.21	321.04	0.2979	689.0	537.6
6	0.00	0.52	0.00	0.26	10.27	51.37	9.00	309.09	0.1992	-846.0	-681.8
7	0.00	1.20	0.00	0.61	12.89	50.31	7.94	321.61	0.2179	667.0	438.2
8	0.00	1.29	0.00	0.65	12.74	49.94	7.57	322.50	0.2120	839.0	698.9
9	1.98	2.50	1.00	1.26	9.96	49.65	7.28	313.70	0.1735	-1010.0	-882.8
10	0.00	1.55	0.00	0.78	9.30	49.19	6.81	312.66	0.1600	-771.0	-607.7
11	0.00	1.12	0.00	0.56	10.56	48.82	6.45	319.59	0.1711	-951.0	-675.7
12	0.00	1.46	0.00	0.74	13.44	48.76	6.39	328.87	0.2105	894.0	701.2
13	1.55	3.44	0.78	1.73	10.74	48.43	6.06	322.02	0.1692	-1094.0	-895.3
14	0.00	1.55	0.00	0.78	9.16	48.03	5.66	317.23	0.1442	1008.0	825.9
15	1.72	2.75	0.86	1.38	11.23	47.22	4.85	329.54	0.1644	965.4	591.3
16	0.60	3.70	0.30	1.86	10.90	47.19	4.81	328.66	0.1592	1147.7	835.2
17	0.00	2.50	0.00	1.25	9.68	46.41	4.04	328.67	0.1342	944.0	820.8
18	0.00	0.86	0.00	0.43	12.13	46.26	3.89	337.03	0.1709	785.0	628.0
19	0.00	0.95	0.00	0.47	11.05	46.13	3.76	335.01	0.1529	865.0	745.2
20	0.00	1.38	0.00	0.69	11.41	46.07	3.70	336.30	0.1582	1081.0	796.4
21	0.00	1.64	0.00	0.82	10.27	46.03	3.66	333.25	0.1401	951.0	668.0
22	0.00	0.95	0.00	0.48	12.82	46.06	3.69	339.57	0.1806	926.0	756.7
23	0.00	0.86	0.00	0.43	10.75	46.00	3.63	334.88	0.1473	795.0	673.0
24	0.00	0.86	0.00	0.43	11.23	45.86	3.49	337.08	0.1539	886.0	727.7
25	0.00	1.12	0.00	0.56	12.85	45.85	3.48	340.72	0.1799	791.0	552.9
26	0.00	1.38	0.00	0.69	10.48	45.76	3.39	335.61	0.1413	1055.0	863.1
27	0.00	1.46	0.00	0.73	10.90	45.64	3.27	337.51	0.1472	926.0	697.2
28	0.00	2.32	0.00	1.16	11.29	45.55	3.18	339.02	0.1529	1093.0	810.2
29	0.00	1.38	0.00	0.69	11.33	44.28	1.91	347.07	0.1470	627.0	468.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
