SDO HMI 2011-11-13 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 14.21 | 1.25 | 8.19 | 10.28 | 12.28 | -30.09 | 75.15 | 0.5133 | -209.3 | -186.5 | |
|
previous
or next observation for the same group /

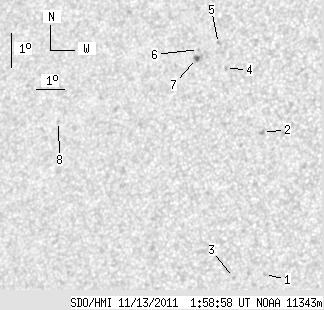

back to the solar disc SDO HMI 2011-11-13 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.63 | 5.31 | 14.54 | -27.83 | 84.56 | 0.4689 | 720.0 | 581.5 | |
| 0.00 | 2.32 | 0.00 | 1.31 | 9.53 | 14.18 | -28.19 | 75.81 | 0.4826 | 897.0 | 658.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 5.19 | 13.49 | -28.88 | 84.92 | 0.4848 | 677.0 | 559.8 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 11.41 | 12.71 | -29.66 | 72.71 | 0.5101 | -930.0 | -678.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 12.15 | 12.37 | -30.00 | 71.46 | 0.5176 | -820.0 | -712.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 11.95 | 11.69 | -30.68 | 72.14 | 0.5265 | -640.0 | -540.0 | |
| 2.15 | 4.65 | 1.25 | 2.70 | 11.68 | 11.66 | -30.71 | 72.66 | 0.5261 | -799.0 | -673.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 9.65 | 6.92 | -35.45 | 77.81 | 0.5872 | -632.0 | -503.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
