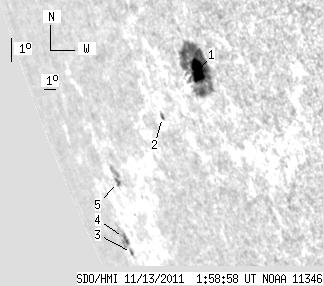

SDO HMI 2011-11-13 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.42 | 126.27 | 24.87 | 182.09 | -19.50 | 335.02 | -67.35 | 112.15 | 0.9351 | 413.3 | 159.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.23 | 101.39 | 18.46 | 123.17 | -17.82 | 338.93 | -63.44 | 111.11 | 0.9145 | 655.0 | 202.0 | |
| 0.69 | 2.50 | 0.99 | 3.58 | -19.48 | 335.04 | -67.33 | 112.07 | 0.9403 | 192.8 | 220.3 | |
| 0.00 | 2.50 | 0.00 | 6.61 | -24.35 | 325.64 | -76.74 | 115.51 | 0.9834 | 214.0 | 110.7 | |
| 0.00 | 10.67 | 0.00 | 28.85 | -23.87 | 325.41 | -76.96 | 115.00 | 0.9838 | 335.0 | 204.9 | |
| 2.50 | 9.21 | 5.42 | 19.88 | -21.95 | 327.87 | -74.50 | 113.40 | 0.9749 | -318.2 | -232.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
