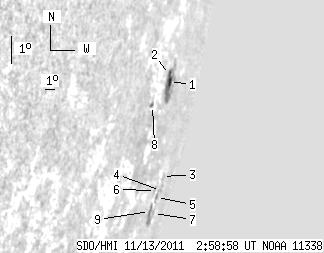

SDO HMI 2011-11-13 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.35 | 40.88 | 25.81 | 131.41 | -12.95 | 121.78 | 79.96 | 256.35 | 0.9879 | 239.2 | 32.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 22.38 | 5.05 | 63.84 | -11.15 | 120.77 | 78.95 | 258.07 | 0.9850 | 340.5 | -0.9 | |
| 1.29 | -1.00 | 3.52 | -1.00 | -10.93 | 120.54 | 78.72 | 258.28 | 0.9842 | 337.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 3.06 | -14.22 | 123.65 | 81.83 | 255.24 | 0.9928 | 49.0 | 88.6 | |
| 0.00 | 1.29 | 0.00 | 5.49 | -14.68 | 124.06 | 82.24 | 254.82 | 0.9937 | -313.0 | -208.9 | |
| 0.00 | 3.10 | 0.00 | 12.23 | -14.86 | 123.51 | 81.69 | 254.58 | 0.9927 | 45.0 | 43.6 | |
| 0.00 | 2.84 | 0.00 | 10.14 | -14.61 | 122.85 | 81.03 | 254.78 | 0.9912 | 465.0 | 355.2 | |
| 0.00 | 1.03 | 0.00 | 4.32 | -15.38 | 123.84 | 82.02 | 254.10 | 0.9934 | -269.0 | -255.1 | |
| 1.46 | 2.15 | 3.46 | 5.08 | -11.78 | 118.85 | 77.02 | 257.25 | 0.9790 | 372.3 | 210.8 | |
| 3.79 | 7.32 | 13.78 | 27.25 | -15.25 | 122.75 | 80.93 | 254.12 | 0.9911 | 232.2 | 70.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
