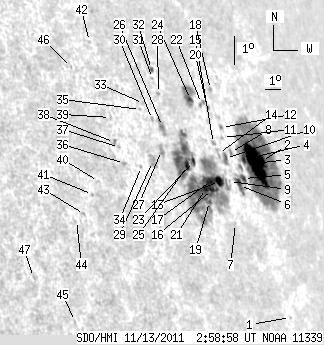

SDO HMI 2011-11-13 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.65 | 554.82 | 97.31 | 645.95 | 19.01 | 106.23 | 64.41 | 289.59 | 0.9061 | -413.1 | -264.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.74 | 14.26 | 107.92 | 66.10 | 284.22 | 0.9158 | -307.0 | -256.1 | |
| 9.21 | 224.65 | 11.85 | 286.57 | 19.02 | 108.96 | 67.14 | 289.33 | 0.9248 | 219.2 | -16.5 | |
| 32.62 | -2.00 | 41.12 | -2.00 | 18.99 | 108.37 | 66.55 | 289.34 | 0.9210 | -660.7 | 999999 | |
| 2.41 | -2.00 | 2.95 | -2.00 | 19.15 | 107.63 | 65.81 | 289.58 | 0.9163 | -732.4 | 999999 | |
| 3.27 | 15.23 | 3.94 | 18.15 | 18.58 | 107.20 | 65.38 | 289.00 | 0.9131 | -560.3 | -491.6 | |
| 5.68 | -5.00 | 6.73 | -5.00 | 18.38 | 106.75 | 64.93 | 288.82 | 0.9099 | -630.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.95 | 17.25 | 105.70 | 63.87 | 287.68 | 0.9018 | -408.0 | -300.0 | |
| 1.12 | 2.32 | 1.33 | 2.77 | 19.41 | 106.84 | 65.02 | 289.94 | 0.9112 | -429.7 | -444.5 | |
| 0.00 | 1.21 | 0.00 | 1.40 | 18.54 | 106.13 | 64.30 | 289.05 | 0.9057 | -336.0 | -312.9 | |
| 3.96 | 5.16 | 4.63 | 6.04 | 19.24 | 106.34 | 64.52 | 289.81 | 0.9077 | -511.7 | -474.1 | |
| 0.00 | 1.38 | 0.00 | 1.63 | 19.89 | 106.61 | 64.79 | 290.49 | 0.9100 | -517.0 | -413.1 | |
| 1.12 | 1.72 | 1.33 | 2.05 | 20.20 | 106.77 | 64.95 | 290.81 | 0.9113 | -248.5 | -269.1 | |
| 4.91 | 227.75 | 5.55 | 247.37 | 18.57 | 105.43 | 63.61 | 289.16 | 0.9008 | -712.9 | -526.6 | |
| 0.00 | 3.01 | 0.00 | 3.48 | 19.42 | 105.96 | 64.14 | 290.04 | 0.9052 | 150.0 | -100.0 | |
| 0.00 | 2.41 | 0.00 | 2.78 | 19.74 | 105.83 | 64.01 | 290.41 | 0.9045 | -590.0 | -461.2 | |
| 1.46 | -13.00 | 1.62 | -13.00 | 18.35 | 104.79 | 62.97 | 288.99 | 0.8960 | -791.4 | 999999 | |
| 0.60 | -13.00 | 0.67 | -13.00 | 18.63 | 104.90 | 63.08 | 289.28 | 0.8970 | -838.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.18 | 21.39 | 106.92 | 65.10 | 292.09 | 0.9132 | -502.0 | -300.4 | |
| 1.81 | -13.00 | 1.97 | -13.00 | 18.00 | 104.36 | 62.53 | 288.64 | 0.8925 | -645.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.12 | 20.82 | 106.22 | 64.40 | 291.55 | 0.9081 | -427.0 | -328.8 | |
| 2.67 | -13.00 | 2.91 | -13.00 | 18.40 | 104.34 | 62.52 | 289.09 | 0.8927 | -882.3 | 999999 | |
| 0.00 | 3.18 | 0.00 | 3.70 | 20.99 | 105.92 | 64.10 | 291.78 | 0.9062 | -301.0 | -345.1 | |
| 1.81 | -13.00 | 1.96 | -13.00 | 19.26 | 104.08 | 62.26 | 290.08 | 0.8915 | -380.6 | 999999 | |
| 2.84 | 17.39 | 3.22 | 19.74 | 21.15 | 105.25 | 63.42 | 292.04 | 0.9017 | -709.6 | -401.3 | |
| 3.44 | -13.00 | 3.68 | -13.00 | 19.15 | 103.61 | 61.79 | 290.02 | 0.8879 | -886.0 | 999999 | |
| 0.00 | 8.26 | 0.00 | 8.64 | 20.41 | 102.79 | 60.96 | 291.55 | 0.8829 | -295.0 | -288.1 | |
| 0.00 | 5.42 | 0.00 | 5.57 | 19.69 | 102.24 | 60.42 | 290.80 | 0.8779 | -525.0 | -488.4 | |
| 0.00 | 0.95 | 0.00 | 1.01 | 21.44 | 103.24 | 61.41 | 292.63 | 0.8874 | -587.0 | -426.1 | |
| 0.00 | 8.52 | 0.00 | 8.55 | 19.38 | 101.48 | 59.66 | 290.56 | 0.8715 | -372.0 | -290.4 | |
| 0.00 | 1.64 | 0.00 | 1.69 | 20.66 | 102.30 | 60.47 | 291.89 | 0.8794 | 241.0 | 151.1 | |
| 0.00 | 0.43 | 0.00 | 0.46 | 21.91 | 103.18 | 61.36 | 293.17 | 0.8876 | -438.0 | -405.0 | |
| 1.72 | 2.24 | 1.85 | 2.40 | 22.19 | 103.33 | 61.50 | 293.46 | 0.8890 | -466.4 | -441.0 | |
| 0.00 | 1.29 | 0.00 | 1.33 | 21.17 | 102.06 | 60.24 | 292.51 | 0.8782 | 74.0 | 57.9 | |
| 0.00 | 0.69 | 0.00 | 0.68 | 19.25 | 100.72 | 58.90 | 290.53 | 0.8653 | 309.0 | 243.2 | |
| 0.00 | 0.60 | 0.00 | 0.61 | 21.00 | 101.75 | 59.93 | 292.36 | 0.8756 | 322.0 | 231.6 | |
| 0.00 | 1.46 | 0.00 | 1.40 | 19.39 | 99.77 | 57.95 | 290.83 | 0.8575 | 612.0 | 557.8 | |
| 0.00 | 1.12 | 0.00 | 1.07 | 19.89 | 99.76 | 57.94 | 291.42 | 0.8581 | 525.0 | 425.8 | |
| 0.00 | 2.32 | 0.00 | 2.22 | 20.06 | 99.56 | 57.74 | 291.64 | 0.8567 | 655.0 | 566.9 | |
| 0.00 | 0.95 | 0.00 | 0.91 | 20.83 | 99.78 | 57.96 | 292.50 | 0.8596 | 300.0 | 302.8 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 18.91 | 98.00 | 56.18 | 290.57 | 0.8416 | 413.0 | 360.3 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 18.53 | 97.47 | 55.65 | 290.21 | 0.8363 | 409.0 | 383.7 | |
| 0.00 | 1.03 | 0.00 | 1.01 | 23.23 | 100.07 | 58.25 | 295.19 | 0.8656 | 213.0 | 137.4 | |
| 0.00 | 1.21 | 0.00 | 1.06 | 17.94 | 96.75 | 54.92 | 289.63 | 0.8289 | 405.0 | 373.9 | |
| 0.00 | 0.52 | 0.00 | 0.45 | 17.77 | 96.24 | 54.41 | 289.53 | 0.8239 | 538.0 | 529.0 | |
| 0.00 | 1.03 | 0.00 | 0.86 | 14.73 | 94.96 | 53.14 | 286.02 | 0.8074 | 514.0 | 349.0 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 22.47 | 98.48 | 56.66 | 294.64 | 0.8514 | 313.0 | 286.3 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 16.14 | 93.34 | 51.52 | 288.05 | 0.7932 | 269.0 | 331.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
