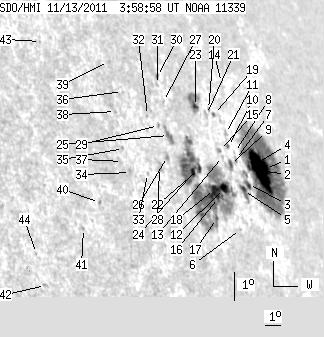

SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.49 | 533.35 | 89.29 | 634.83 | 19.04 | 106.34 | 65.06 | 289.55 | 0.9107 | -414.8 | -262.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.44 | 238.00 | 11.09 | 308.67 | 19.03 | 108.92 | 67.65 | 289.29 | 0.9280 | 241.7 | -41.5 | |
| 31.76 | -1.00 | 40.88 | -1.00 | 18.99 | 108.39 | 67.12 | 289.29 | 0.9247 | -665.8 | 999999 | |
| 3.36 | -1.00 | 4.12 | -1.00 | 18.61 | 107.22 | 65.94 | 288.98 | 0.9169 | -570.8 | 999999 | |
| 0.60 | -1.00 | 0.75 | -1.00 | 19.09 | 107.52 | 66.24 | 289.48 | 0.9191 | -589.9 | 999999 | |
| 2.41 | -1.00 | 2.91 | -1.00 | 18.45 | 106.71 | 65.44 | 288.85 | 0.9134 | -675.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.00 | 17.28 | 105.68 | 64.40 | 287.67 | 0.9056 | -397.0 | -392.0 | |
| 0.00 | 2.84 | 0.00 | 3.45 | 19.41 | 106.83 | 65.56 | 289.89 | 0.9148 | -485.0 | -418.2 | |
| 0.00 | 0.95 | 0.00 | 1.15 | 19.62 | 106.92 | 65.65 | 290.11 | 0.9156 | -359.0 | -310.8 | |
| 3.10 | 7.32 | 3.70 | 8.70 | 19.28 | 106.35 | 65.07 | 289.79 | 0.9115 | -545.1 | -284.3 | |
| 1.64 | 2.07 | 1.97 | 2.49 | 19.83 | 106.62 | 65.35 | 290.37 | 0.9137 | -451.5 | -390.0 | |
| 0.00 | 2.07 | 0.00 | 2.51 | 20.23 | 106.72 | 65.44 | 290.80 | 0.9147 | -367.0 | -229.0 | |
| 4.48 | 154.76 | 5.15 | 172.20 | 18.57 | 105.39 | 64.12 | 289.11 | 0.9044 | -741.0 | -495.0 | |
| 0.00 | 1.03 | 0.00 | 1.22 | 19.55 | 105.95 | 64.68 | 290.13 | 0.9090 | -180.0 | -158.8 | |
| 0.00 | 1.12 | 0.00 | 1.42 | 21.80 | 107.76 | 66.49 | 292.38 | 0.9225 | -287.0 | -236.5 | |
| 0.00 | 2.07 | 0.00 | 2.43 | 19.74 | 105.87 | 64.60 | 290.35 | 0.9086 | -580.0 | -451.5 | |
| 1.12 | -12.00 | 1.26 | -12.00 | 18.32 | 104.79 | 63.51 | 288.90 | 0.8999 | -789.6 | 999999 | |
| 0.52 | -12.00 | 0.57 | -12.00 | 17.69 | 104.24 | 62.97 | 288.26 | 0.8955 | -367.3 | 999999 | |
| 4.05 | -12.00 | 4.54 | -12.00 | 18.57 | 104.68 | 63.40 | 289.19 | 0.8993 | -797.2 | 999999 | |
| 1.21 | 1.81 | 1.44 | 2.17 | 20.85 | 106.31 | 65.03 | 291.52 | 0.9124 | -244.5 | -234.1 | |
| 0.00 | 1.12 | 0.00 | 1.33 | 21.02 | 106.07 | 64.79 | 291.73 | 0.9109 | -326.0 | -286.6 | |
| 0.00 | 2.32 | 0.00 | 2.74 | 20.87 | 105.80 | 64.53 | 291.60 | 0.9090 | -481.0 | -405.7 | |
| 3.01 | 60.68 | 3.33 | 65.82 | 19.26 | 104.09 | 62.82 | 290.01 | 0.8956 | -442.6 | -621.1 | |
| 2.75 | 17.99 | 3.18 | 20.80 | 21.15 | 105.21 | 63.94 | 291.98 | 0.9052 | -733.4 | -338.8 | |
| 3.01 | -22.00 | 3.27 | -22.00 | 19.15 | 103.61 | 62.33 | 289.96 | 0.8920 | -875.6 | 999999 | |
| 0.00 | 9.21 | 0.00 | 9.79 | 20.36 | 102.73 | 61.46 | 291.41 | 0.8866 | -322.0 | -317.2 | |
| 0.00 | 3.18 | 0.00 | 3.32 | 19.72 | 102.24 | 60.97 | 290.77 | 0.8822 | -543.0 | -498.6 | |
| 0.00 | 1.12 | 0.00 | 1.21 | 21.41 | 103.15 | 61.87 | 292.53 | 0.8908 | -468.0 | -435.8 | |
| 0.00 | 4.22 | 0.00 | 4.31 | 19.41 | 101.52 | 60.25 | 290.51 | 0.8763 | -378.0 | -320.1 | |
| 0.00 | 1.38 | 0.00 | 1.45 | 20.69 | 102.30 | 61.03 | 291.85 | 0.8837 | 203.0 | 120.1 | |
| 1.03 | 1.81 | 1.13 | 1.97 | 22.19 | 103.33 | 62.06 | 293.38 | 0.8930 | -458.7 | -471.9 | |
| 0.00 | 1.12 | 0.00 | 1.21 | 21.95 | 103.14 | 61.87 | 293.14 | 0.8914 | -379.0 | -355.8 | |
| 0.00 | 0.52 | 0.00 | 0.54 | 21.03 | 101.81 | 60.54 | 292.30 | 0.8804 | 226.0 | 196.3 | |
| 0.00 | 1.12 | 0.00 | 1.11 | 19.26 | 100.68 | 59.40 | 290.46 | 0.8694 | 339.0 | 258.8 | |
| 0.00 | 2.15 | 0.00 | 2.08 | 19.33 | 99.68 | 58.40 | 290.70 | 0.8613 | 483.0 | 389.9 | |
| 0.00 | 0.95 | 0.00 | 0.92 | 20.08 | 99.69 | 58.42 | 291.56 | 0.8624 | 602.0 | 589.5 | |
| 0.00 | 0.95 | 0.00 | 0.96 | 21.84 | 100.76 | 59.48 | 293.38 | 0.8732 | 153.0 | 166.2 | |
| 0.00 | 1.03 | 0.00 | 0.99 | 19.69 | 99.40 | 58.13 | 291.16 | 0.8594 | 524.0 | 533.5 | |
| 0.00 | 1.21 | 0.00 | 1.18 | 21.24 | 99.92 | 58.65 | 292.85 | 0.8658 | 379.0 | 251.8 | |
| 0.00 | 1.29 | 0.00 | 1.30 | 22.80 | 100.54 | 59.27 | 294.51 | 0.8729 | -135.0 | -111.4 | |
| 0.00 | 1.55 | 0.00 | 1.41 | 18.50 | 97.42 | 56.14 | 290.10 | 0.8407 | 488.0 | 345.2 | |
| 0.00 | 0.95 | 0.00 | 0.83 | 17.75 | 96.17 | 54.89 | 289.42 | 0.8283 | 514.0 | 394.3 | |
| 0.00 | 1.46 | 0.00 | 1.20 | 16.10 | 93.49 | 52.22 | 287.88 | 0.8001 | 544.0 | 464.6 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 23.60 | 96.97 | 55.69 | 296.15 | 0.8454 | 431.0 | 362.3 | |
| 0.00 | 0.86 | 0.00 | 0.71 | 17.09 | 93.41 | 52.14 | 289.12 | 0.8010 | 537.0 | 422.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
