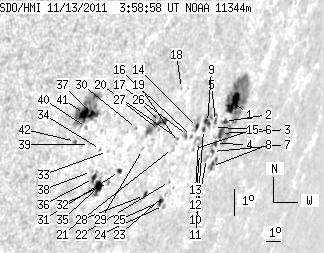

SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.38 | 260.97 | 70.89 | 310.56 | -17.98 | 104.00 | 62.73 | 248.50 | 0.9085 | 150.4 | 31.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 94.17 | 14.94 | 126.90 | -17.30 | 107.36 | 66.09 | 249.98 | 0.9305 | 593.9 | 77.2 | |
| 1.72 | -1.00 | 2.29 | -1.00 | -17.85 | 107.06 | 65.79 | 249.34 | 0.9294 | 377.0 | 999999 | |
| 4.13 | -1.00 | 5.50 | -1.00 | -18.23 | 107.03 | 65.75 | 248.94 | 0.9297 | 357.2 | 999999 | |
| 1.38 | -1.00 | 1.82 | -1.00 | -18.54 | 106.87 | 65.60 | 248.58 | 0.9291 | 419.8 | 999999 | |
| 1.46 | 3.27 | 1.89 | 4.21 | -17.82 | 106.35 | 65.08 | 249.24 | 0.9250 | 264.5 | 317.7 | |
| 0.00 | 0.77 | 0.00 | 1.00 | -18.00 | 106.33 | 65.06 | 249.04 | 0.9251 | 297.0 | 192.4 | |
| 1.29 | -1.00 | 1.71 | -1.00 | -18.79 | 106.83 | 65.56 | 248.31 | 0.9292 | 424.5 | 999999 | |
| 2.67 | 6.80 | 3.60 | 9.18 | -19.28 | 107.14 | 65.86 | 247.85 | 0.9316 | 325.8 | 143.5 | |
| 3.18 | 13.51 | 4.01 | 17.01 | -17.82 | 105.76 | 64.49 | 249.12 | 0.9213 | 582.6 | 462.6 | |
| 0.00 | 2.24 | 0.00 | 2.93 | -19.00 | 106.53 | 65.26 | 248.03 | 0.9277 | 677.0 | 580.4 | |
| 1.64 | -9.00 | 2.06 | -9.00 | -18.03 | 105.61 | 64.34 | 248.86 | 0.9207 | 438.9 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.77 | -18.80 | 105.87 | 64.59 | 248.09 | 0.9233 | 232.0 | 231.1 | |
| 0.00 | 6.37 | 0.00 | 8.00 | -18.40 | 105.51 | 64.24 | 248.44 | 0.9205 | 375.0 | 359.7 | |
| 1.81 | 7.23 | 2.23 | 8.87 | -17.94 | 105.12 | 63.85 | 248.85 | 0.9174 | 466.0 | 389.0 | |
| 0.00 | 0.86 | 0.00 | 1.07 | -18.65 | 105.32 | 64.04 | 248.14 | 0.9196 | 424.0 | 323.5 | |
| 0.00 | 1.38 | 0.00 | 1.68 | -18.21 | 104.88 | 63.60 | 248.51 | 0.9162 | 500.0 | 440.1 | |
| 0.77 | 2.75 | 0.94 | 3.32 | -18.17 | 104.56 | 63.29 | 248.49 | 0.9140 | 596.8 | 559.3 | |
| 0.00 | 0.95 | 0.00 | 1.08 | -16.62 | 103.21 | 61.93 | 249.86 | 0.9024 | -363.0 | -288.6 | |
| 0.00 | 0.69 | 0.00 | 0.82 | -18.36 | 104.06 | 62.79 | 248.17 | 0.9110 | 482.0 | 510.6 | |
| 0.00 | 0.86 | 0.00 | 1.02 | -18.23 | 103.91 | 62.64 | 248.28 | 0.9098 | 608.0 | 564.2 | |
| 0.00 | 1.89 | 0.00 | 2.24 | -18.54 | 103.77 | 62.49 | 247.91 | 0.9093 | 482.0 | 420.8 | |
| 0.00 | 1.03 | 0.00 | 1.25 | -19.61 | 104.29 | 63.01 | 246.88 | 0.9145 | -113.0 | -110.7 | |
| 0.00 | 1.55 | 0.00 | 1.89 | -20.03 | 104.31 | 63.03 | 246.44 | 0.9152 | -194.0 | -188.3 | |
| 0.00 | 1.46 | 0.00 | 1.80 | -20.39 | 104.43 | 63.15 | 246.09 | 0.9166 | -163.0 | -153.7 | |
| 2.50 | 4.13 | 3.02 | 5.00 | -20.24 | 104.11 | 62.84 | 246.17 | 0.9143 | -319.8 | -247.3 | |
| 6.71 | 19.71 | 7.51 | 21.83 | -17.65 | 102.42 | 61.14 | 248.56 | 0.8985 | 504.1 | 451.7 | |
| 0.00 | 0.77 | 0.00 | 0.87 | -17.91 | 102.50 | 61.23 | 248.30 | 0.8996 | 599.0 | 473.2 | |
| 1.72 | 2.67 | 1.99 | 3.09 | -19.99 | 102.84 | 61.56 | 246.13 | 0.9055 | -161.0 | -108.4 | |
| 0.00 | 1.38 | 0.00 | 1.52 | -18.47 | 101.74 | 60.47 | 247.51 | 0.8951 | -167.0 | -62.2 | |
| 0.00 | 0.86 | 0.00 | 0.92 | -17.77 | 100.96 | 59.68 | 248.08 | 0.8881 | 471.0 | 458.4 | |
| 1.55 | 2.58 | 1.66 | 2.76 | -19.12 | 100.67 | 59.40 | 246.53 | 0.8885 | -193.3 | -59.7 | |
| 0.00 | 1.64 | 0.00 | 1.73 | -19.44 | 100.18 | 58.91 | 246.04 | 0.8856 | -300.0 | -164.0 | |
| 0.00 | 1.03 | 0.00 | 1.06 | -18.43 | 99.55 | 58.27 | 246.99 | 0.8787 | 279.0 | 255.7 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -18.34 | 99.08 | 57.81 | 246.96 | 0.8749 | -260.0 | -232.4 | |
| 5.16 | 19.37 | 5.38 | 20.06 | -19.54 | 99.63 | 58.36 | 245.78 | 0.8817 | -548.4 | -324.2 | |
| 2.93 | -35.00 | 3.00 | -35.00 | -19.27 | 99.18 | 57.90 | 245.96 | 0.8776 | -642.3 | 999999 | |
| 2.15 | 52.25 | 2.10 | 50.55 | -17.15 | 97.96 | 56.69 | 247.98 | 0.8634 | -670.0 | -429.6 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -19.03 | 98.93 | 57.65 | 246.15 | 0.8752 | -261.0 | -305.1 | |
| 0.00 | 0.95 | 0.00 | 0.94 | -18.15 | 98.34 | 57.07 | 246.97 | 0.8687 | -462.0 | -361.3 | |
| 0.00 | 1.55 | 0.00 | 1.51 | -17.59 | 97.89 | 56.62 | 247.47 | 0.8638 | -289.0 | -191.0 | |
| 4.39 | -37.00 | 4.24 | -37.00 | -17.13 | 97.56 | 56.29 | 247.89 | 0.8601 | -932.0 | 999999 | |
| 1.03 | 1.64 | 1.00 | 1.58 | -18.01 | 97.47 | 56.20 | 246.88 | 0.8613 | -528.3 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
