SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.84 | 52.59 | 12.83 | 42.59 | -24.97 | 86.60 | 45.33 | 234.61 | 0.7916 | 219.9 | -32.4 | |
|
previous
or next observation for the same group /

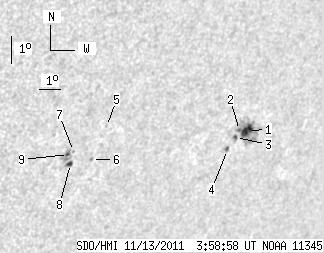

back to the solar disc SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.18 | 34.86 | 6.83 | 29.18 | -24.81 | 88.52 | 47.25 | 235.83 | 0.8078 | 706.0 | 133.5 | |
| 1.29 | -1.00 | 1.07 | -1.00 | -24.79 | 88.13 | 46.85 | 235.66 | 0.8044 | 826.7 | 999999 | |
| 1.29 | 1.81 | 1.07 | 1.50 | -25.02 | 88.05 | 46.78 | 235.37 | 0.8047 | 641.5 | 650.5 | |
| 1.29 | 1.98 | 1.07 | 1.64 | -25.42 | 87.86 | 46.59 | 234.83 | 0.8049 | 580.2 | 603.9 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -24.41 | 81.92 | 40.65 | 232.80 | 0.7470 | -552.0 | -448.9 | |
| 0.00 | 1.29 | 0.00 | 0.97 | -25.51 | 81.72 | 40.44 | 231.40 | 0.7514 | -629.0 | -525.0 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -25.21 | 80.82 | 39.55 | 231.20 | 0.7415 | -530.0 | -545.0 | |
| 2.50 | 3.36 | 1.84 | 2.48 | -25.61 | 80.85 | 39.58 | 230.75 | 0.7442 | -532.4 | -504.3 | |
| 1.29 | 7.92 | 0.95 | 5.81 | -25.30 | 80.64 | 39.37 | 230.98 | 0.7405 | -886.6 | -637.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
