SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.33 | 137.05 | 24.68 | 187.34 | -19.49 | 335.17 | -66.10 | 112.38 | 0.9281 | 411.6 | 171.4 | |
|
previous
or next observation for the same group /

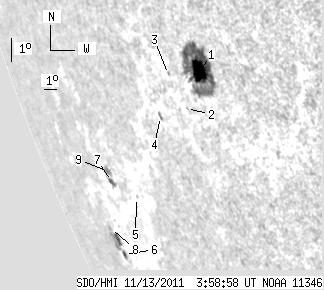

back to the solar disc SDO HMI 2011-11-13 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.32 | 108.63 | 17.85 | 126.58 | -17.80 | 338.95 | -62.32 | 111.33 | 0.9070 | 653.1 | 221.4 | |
| 0.00 | 0.95 | 0.00 | 1.18 | -19.06 | 337.27 | -64.00 | 112.31 | 0.9200 | 287.0 | 262.4 | |
| 0.00 | 1.29 | 0.00 | 1.64 | -18.01 | 336.70 | -64.57 | 111.07 | 0.9221 | 190.0 | 175.3 | |
| 0.00 | 2.07 | 0.00 | 2.83 | -19.43 | 335.03 | -66.25 | 112.23 | 0.9340 | 357.0 | 228.7 | |
| 0.00 | 0.69 | 0.00 | 1.23 | -22.29 | 330.06 | -71.22 | 114.27 | 0.9621 | -210.0 | -225.4 | |
| 1.72 | 13.00 | 4.22 | 32.19 | -24.40 | 325.56 | -75.71 | 115.70 | 0.9803 | 314.5 | 203.1 | |
| 1.29 | 4.22 | 2.61 | 8.53 | -21.89 | 327.90 | -73.37 | 113.51 | 0.9707 | -384.0 | -258.6 | |
| 0.00 | 1.38 | 0.00 | 3.45 | -23.57 | 325.15 | -76.12 | 114.80 | 0.9811 | 245.0 | 193.4 | |
| 0.00 | 4.82 | 0.00 | 9.71 | -21.57 | 327.88 | -73.39 | 113.18 | 0.9705 | -223.0 | -204.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
