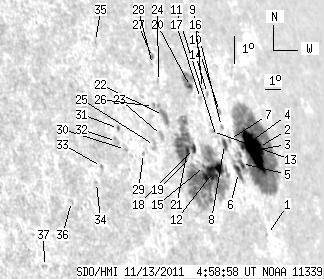

SDO HMI 2011-11-13 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.39 | 518.37 | 106.27 | 628.63 | 18.99 | 106.22 | 65.49 | 289.46 | 0.9135 | -463.3 | -243.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.63 | 16.42 | 107.59 | 66.86 | 286.54 | 0.9218 | -490.0 | -387.4 | |
| 9.73 | 233.27 | 13.08 | 308.97 | 19.06 | 108.91 | 68.18 | 289.29 | 0.9312 | 292.1 | -24.3 | |
| 30.21 | -2.00 | 39.71 | -2.00 | 19.00 | 108.34 | 67.62 | 289.26 | 0.9278 | -664.0 | 999999 | |
| 1.12 | -2.00 | 1.43 | -2.00 | 19.12 | 107.63 | 66.90 | 289.46 | 0.9234 | -638.5 | 999999 | |
| 3.53 | -2.00 | 4.42 | -2.00 | 18.65 | 107.16 | 66.44 | 288.98 | 0.9202 | -583.4 | 999999 | |
| 6.71 | -2.00 | 8.27 | -2.00 | 18.39 | 106.73 | 66.00 | 288.74 | 0.9172 | -584.8 | 999999 | |
| 0.00 | 2.67 | 0.00 | 3.31 | 19.41 | 106.83 | 66.10 | 289.84 | 0.9184 | -544.0 | -425.0 | |
| 4.48 | 5.85 | 5.45 | 7.13 | 19.28 | 106.33 | 65.60 | 289.75 | 0.9151 | -510.9 | -425.6 | |
| 0.00 | 1.38 | 0.00 | 1.69 | 19.83 | 106.54 | 65.81 | 290.33 | 0.9168 | -511.0 | -470.1 | |
| 0.00 | 2.50 | 0.00 | 3.10 | 20.30 | 106.76 | 66.04 | 290.81 | 0.9186 | -324.0 | -199.0 | |
| 0.00 | 0.52 | 0.00 | 0.62 | 19.55 | 105.93 | 65.20 | 290.08 | 0.9126 | -247.0 | -251.7 | |
| 20.31 | 154.60 | 23.43 | 175.19 | 18.50 | 104.94 | 64.21 | 289.03 | 0.9050 | -760.7 | -464.0 | |
| 0.00 | 1.81 | 0.00 | 2.16 | 19.71 | 105.76 | 65.03 | 290.28 | 0.9115 | -514.0 | -440.7 | |
| 0.00 | 1.72 | 0.00 | 2.10 | 20.88 | 106.32 | 65.60 | 291.49 | 0.9162 | -272.0 | -245.8 | |
| 1.03 | -12.00 | 1.17 | -12.00 | 18.68 | 104.41 | 63.69 | 289.29 | 0.9015 | -712.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.94 | 21.05 | 106.08 | 65.35 | 291.71 | 0.9147 | -337.0 | -270.7 | |
| 0.00 | 2.24 | 0.00 | 2.67 | 20.76 | 105.68 | 64.95 | 291.43 | 0.9118 | -546.0 | -464.2 | |
| 3.10 | 54.57 | 3.48 | 60.37 | 19.26 | 104.10 | 63.38 | 289.96 | 0.8997 | -487.6 | -633.6 | |
| 0.00 | 1.21 | 0.00 | 1.34 | 19.03 | 103.73 | 63.00 | 289.74 | 0.8968 | -574.0 | -558.5 | |
| 1.55 | 14.46 | 1.83 | 17.04 | 21.16 | 105.25 | 64.53 | 291.91 | 0.9093 | -734.9 | -424.3 | |
| 2.50 | -18.00 | 2.76 | -18.00 | 19.22 | 103.59 | 62.86 | 289.97 | 0.8959 | -885.2 | 999999 | |
| 0.00 | 10.50 | 0.00 | 11.36 | 20.36 | 102.73 | 62.00 | 291.35 | 0.8907 | -369.0 | -336.4 | |
| 0.00 | 4.22 | 0.00 | 4.47 | 19.76 | 102.18 | 61.45 | 290.75 | 0.8860 | -548.0 | -456.0 | |
| 0.00 | 0.95 | 0.00 | 1.04 | 21.41 | 103.15 | 62.42 | 292.46 | 0.8949 | -508.0 | -481.6 | |
| 0.00 | 5.08 | 0.00 | 5.27 | 19.47 | 101.53 | 60.81 | 290.51 | 0.8807 | -394.0 | -337.2 | |
| 0.00 | 1.46 | 0.00 | 1.56 | 20.66 | 102.26 | 61.54 | 291.75 | 0.8876 | 212.0 | 68.2 | |
| 1.12 | 1.72 | 1.24 | 1.91 | 22.17 | 103.32 | 62.59 | 293.28 | 0.8968 | -423.8 | -488.3 | |
| 0.00 | 0.43 | 0.00 | 0.48 | 21.95 | 103.15 | 62.42 | 293.06 | 0.8954 | -438.0 | -398.6 | |
| 0.00 | 1.03 | 0.00 | 1.04 | 19.26 | 100.69 | 59.97 | 290.39 | 0.8739 | 243.0 | 212.7 | |
| 0.00 | 1.46 | 0.00 | 1.44 | 19.43 | 99.67 | 58.95 | 290.74 | 0.8659 | 582.0 | 502.2 | |
| 0.00 | 1.55 | 0.00 | 1.53 | 20.09 | 99.64 | 58.91 | 291.50 | 0.8664 | 627.0 | 556.0 | |
| 0.00 | 3.36 | 0.00 | 3.27 | 19.70 | 99.28 | 58.55 | 291.10 | 0.8630 | 528.0 | 459.7 | |
| 0.00 | 1.64 | 0.00 | 1.53 | 18.98 | 97.98 | 57.25 | 290.48 | 0.8511 | 519.0 | 409.2 | |
| 0.00 | 1.21 | 0.00 | 1.11 | 18.50 | 97.44 | 56.71 | 290.01 | 0.8458 | 515.0 | 383.4 | |
| 0.00 | 1.03 | 0.00 | 1.04 | 22.83 | 100.01 | 59.28 | 294.55 | 0.8731 | 204.0 | 166.6 | |
| 0.00 | 1.89 | 0.00 | 1.67 | 17.98 | 95.78 | 55.06 | 289.68 | 0.8302 | 231.0 | 283.1 | |
| 0.00 | 1.98 | 0.00 | 1.65 | 16.08 | 93.54 | 52.82 | 287.75 | 0.8060 | 468.0 | 414.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
