SDO HMI 2011-11-13 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.21 | 45.38 | 11.67 | 37.23 | -24.98 | 86.76 | 46.04 | 234.97 | 0.7978 | 158.6 | -3.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

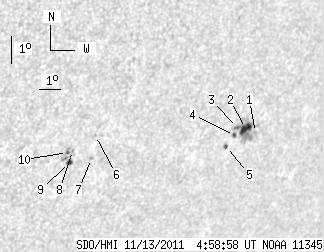

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.55 | -24.96 | 89.03 | 48.30 | 236.15 | 0.8173 | -206.0 | -217.7 | |
| 7.06 | 28.58 | 5.96 | 24.16 | -24.80 | 88.45 | 47.73 | 236.07 | 0.8118 | 733.4 | 185.2 | |
| 1.29 | -2.00 | 1.08 | -2.00 | -24.75 | 88.04 | 47.31 | 235.93 | 0.8081 | 751.2 | 999999 | |
| 1.38 | 2.24 | 1.15 | 1.88 | -25.02 | 88.03 | 47.30 | 235.63 | 0.8091 | 610.8 | 648.6 | |
| 1.64 | 1.98 | 1.37 | 1.66 | -25.38 | 87.82 | 47.10 | 235.13 | 0.8090 | 628.5 | 500.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -24.76 | 81.56 | 40.83 | 232.51 | 0.7506 | -645.0 | -566.4 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -25.54 | 81.70 | 40.97 | 231.69 | 0.7563 | -596.0 | -534.6 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -25.23 | 80.75 | 40.02 | 231.48 | 0.7460 | -594.0 | -563.4 | |
| 2.50 | 5.51 | 1.86 | 4.09 | -25.64 | 80.79 | 40.06 | 231.03 | 0.7486 | -549.9 | -611.1 | |
| 0.34 | 2.24 | 0.25 | 1.65 | -25.29 | 80.56 | 39.83 | 231.29 | 0.7446 | -830.8 | -660.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
