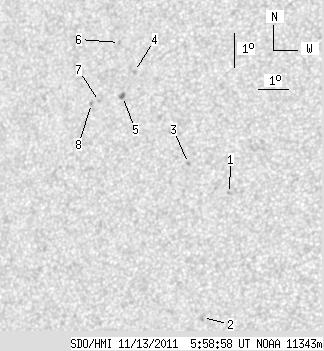

SDO HMI 2011-11-13 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 13.09 | 0.54 | 7.34 | 10.10 | 12.87 | -27.31 | 74.47 | 0.4723 | -179.9 | -139.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.71 | 8.72 | 15.64 | -24.54 | 75.94 | 0.4250 | 801.0 | 558.8 | |
| 0.00 | 2.32 | 0.00 | 1.27 | 5.01 | 14.96 | -25.22 | 84.80 | 0.4280 | 595.0 | 442.3 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 9.58 | 14.21 | -25.97 | 74.67 | 0.4496 | 913.0 | 708.8 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 12.29 | 12.11 | -28.07 | 70.15 | 0.4908 | -813.0 | -649.0 | |
| 0.95 | 2.24 | 0.54 | 1.27 | 11.53 | 11.78 | -28.40 | 71.82 | 0.4925 | -972.6 | -780.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 13.15 | 11.49 | -28.69 | 68.83 | 0.5034 | -780.0 | -605.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 11.36 | 11.01 | -29.17 | 72.52 | 0.5031 | -753.0 | -643.9 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 11.30 | 10.74 | -29.44 | 72.78 | 0.5067 | -794.0 | -654.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
