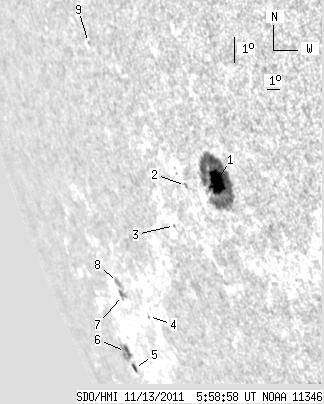

SDO HMI 2011-11-13 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.50 | 139.27 | 23.39 | 179.16 | -19.19 | 335.52 | -64.66 | 112.36 | 0.9193 | 478.7 | 155.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.18 | 112.85 | 18.12 | 126.46 | -17.75 | 339.01 | -61.17 | 111.54 | 0.8988 | 696.0 | 222.3 | |
| 0.00 | 1.72 | 0.00 | 2.09 | -17.99 | 336.77 | -63.41 | 111.29 | 0.9146 | 433.0 | 288.4 | |
| 0.00 | 1.03 | 0.00 | 1.36 | -19.35 | 335.00 | -65.18 | 112.35 | 0.9276 | 269.0 | 212.2 | |
| 0.00 | 1.03 | 0.00 | 1.78 | -22.55 | 329.74 | -70.44 | 114.66 | 0.9589 | -274.0 | -208.8 | |
| 2.32 | 3.10 | 5.27 | 7.02 | -24.48 | 325.49 | -74.69 | 115.93 | 0.9770 | 308.8 | 91.1 | |
| 0.00 | 9.73 | 0.00 | 22.31 | -23.93 | 325.27 | -74.91 | 115.34 | 0.9774 | 398.0 | 150.0 | |
| 0.00 | 4.91 | 0.00 | 9.33 | -21.97 | 327.80 | -72.38 | 113.74 | 0.9668 | -453.0 | -305.8 | |
| 0.00 | 3.87 | 0.00 | 7.35 | -21.55 | 327.80 | -72.38 | 113.31 | 0.9664 | -191.0 | -162.6 | |
| 0.00 | 1.03 | 0.00 | 1.46 | -13.77 | 332.08 | -68.10 | 105.93 | 0.9387 | 128.0 | 112.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
