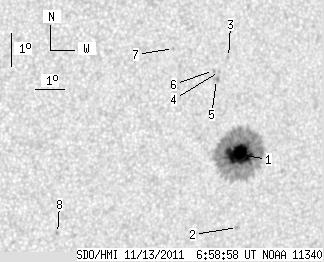

SDO HMI 2011-11-13 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.00 | 202.97 | 20.65 | 123.19 | -8.32 | 73.14 | 33.51 | 250.93 | 0.5802 | 796.0 | 347.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.00 | 192.89 | 20.65 | 117.19 | -8.38 | 73.21 | 33.58 | 250.86 | 0.5814 | 1213.7 | 391.0 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -10.60 | 73.39 | 33.76 | 247.37 | 0.5940 | 882.0 | 574.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -5.44 | 72.58 | 32.95 | 255.54 | 0.5613 | -691.0 | -483.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -5.85 | 72.29 | 32.66 | 254.70 | 0.5587 | -639.0 | -466.3 | |
| 0.00 | 2.58 | 0.00 | 1.54 | -6.08 | 72.20 | 32.57 | 254.24 | 0.5583 | -757.0 | -609.3 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -5.81 | 72.08 | 32.44 | 254.67 | 0.5555 | -437.0 | -495.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -5.11 | 70.63 | 31.00 | 255.26 | 0.5325 | -719.0 | -566.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.60 | 67.06 | 27.43 | 243.00 | 0.5103 | -691.0 | -568.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
