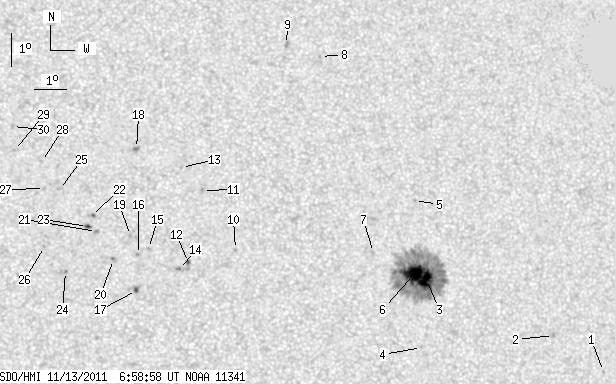

SDO HMI 2011-11-13 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.08 | 256.51 | 20.33 | 133.48 | 9.72 | 55.96 | 16.33 | 294.21 | 0.3050 | -477.5 | -350.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 6.47 | 63.01 | 23.37 | 279.14 | 0.4010 | -886.0 | -731.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 7.58 | 61.44 | 21.81 | 282.56 | 0.3790 | -874.0 | -673.3 | |
| 13.94 | 210.54 | 7.30 | 110.05 | 9.32 | 57.49 | 17.85 | 290.16 | 0.3237 | -1291.9 | -440.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 7.29 | 57.23 | 17.60 | 284.19 | 0.3107 | -877.0 | -745.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 11.69 | 57.25 | 17.61 | 297.15 | 0.3345 | -782.0 | -636.8 | |
| 20.06 | -3.00 | 10.47 | -3.00 | 9.47 | 57.08 | 17.45 | 291.02 | 0.3183 | -1466.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 10.15 | 55.86 | 16.23 | 294.44 | 0.3035 | -738.0 | -567.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 16.08 | 54.57 | 14.93 | 312.45 | 0.3371 | 718.0 | 497.8 | |
| 0.00 | 2.75 | 0.00 | 1.44 | 16.46 | 53.51 | 13.88 | 315.33 | 0.3287 | 927.0 | 692.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 10.29 | 51.58 | 11.94 | 301.86 | 0.2408 | -834.0 | -658.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.07 | 50.63 | 11.00 | 310.11 | 0.2450 | 838.0 | 722.4 | |
| 1.46 | 3.87 | 0.74 | 1.96 | 9.92 | 50.12 | 10.48 | 303.76 | 0.2166 | -875.2 | -755.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.77 | 50.01 | 10.38 | 313.90 | 0.2449 | 892.0 | 599.8 | |
| 0.00 | 2.32 | 0.00 | 1.18 | 9.71 | 49.84 | 10.20 | 303.64 | 0.2107 | -1214.0 | -902.4 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 10.35 | 48.91 | 9.27 | 308.71 | 0.2041 | -897.0 | -643.2 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 10.17 | 48.60 | 8.96 | 308.95 | 0.1981 | -1056.0 | -856.6 | |
| 1.64 | 2.07 | 0.82 | 1.04 | 9.10 | 48.51 | 8.87 | 304.66 | 0.1861 | 986.1 | 848.6 | |
| 0.00 | 2.75 | 0.00 | 1.40 | 13.35 | 48.64 | 9.01 | 319.57 | 0.2360 | 1072.0 | 875.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 10.74 | 48.37 | 8.74 | 311.88 | 0.2014 | -828.0 | -587.2 | |
| 0.00 | 2.50 | 0.00 | 1.26 | 10.03 | 47.83 | 8.20 | 310.84 | 0.1865 | -1013.0 | -753.9 | |
| 0.00 | 2.50 | 0.00 | 1.26 | 10.87 | 47.34 | 7.70 | 315.91 | 0.1900 | 766.0 | 484.5 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 11.35 | 47.20 | 7.56 | 318.16 | 0.1944 | 868.0 | 771.4 | |
| 1.98 | 2.75 | 1.00 | 1.39 | 11.02 | 47.07 | 7.43 | 317.48 | 0.1887 | 780.2 | 719.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 9.68 | 46.37 | 6.73 | 314.89 | 0.1639 | 1015.0 | 810.8 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 12.14 | 46.24 | 6.61 | 324.48 | 0.1945 | 854.0 | 689.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.43 | 45.75 | 6.11 | 320.73 | 0.1662 | 861.0 | 639.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.17 | 45.78 | 6.15 | 326.48 | 0.1905 | 904.0 | 628.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.98 | 45.71 | 6.08 | 329.06 | 0.2016 | 810.0 | 593.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.32 | 44.89 | 5.26 | 333.36 | 0.1998 | 837.0 | 670.9 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 14.04 | 44.85 | 5.21 | 335.13 | 0.2106 | 836.0 | 646.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
