SDO HMI 2011-11-13 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 18.68 | 0.63 | 10.52 | 11.14 | 11.82 | -27.26 | 72.24 | 0.4755 | -370.3 | -331.4 | |
|
previous
or next observation for the same group /

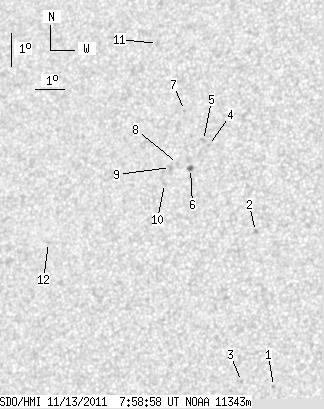

back to the solar disc SDO HMI 2011-11-13 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.03 | 15.02 | -24.07 | 84.58 | 0.4099 | 824.0 | 684.7 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 9.62 | 14.15 | -24.93 | 74.05 | 0.4341 | 812.0 | 682.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 5.15 | 13.96 | -25.13 | 84.44 | 0.4267 | 786.0 | 598.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 12.16 | 12.34 | -26.75 | 69.63 | 0.4713 | -825.0 | -690.4 | |
| 0.00 | 2.07 | 0.00 | 1.16 | 12.30 | 12.15 | -26.94 | 69.45 | 0.4747 | -808.0 | -654.6 | |
| 1.12 | 2.75 | 0.63 | 1.55 | 11.45 | 11.80 | -27.29 | 71.37 | 0.4762 | -918.3 | -724.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 13.19 | 11.40 | -27.69 | 68.14 | 0.4895 | -745.0 | -651.9 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 11.59 | 11.34 | -27.75 | 71.34 | 0.4834 | -734.0 | -530.0 | |
| 0.00 | 2.67 | 0.00 | 1.51 | 11.47 | 11.11 | -27.98 | 71.71 | 0.4862 | -842.0 | -639.4 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 10.98 | 10.96 | -28.13 | 72.75 | 0.4866 | -797.0 | -645.3 | |
| 0.00 | 2.24 | 0.00 | 1.29 | 15.19 | 10.18 | -28.91 | 65.13 | 0.5162 | -599.0 | -481.6 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 9.12 | 7.11 | -31.98 | 77.79 | 0.5372 | -800.0 | -689.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
