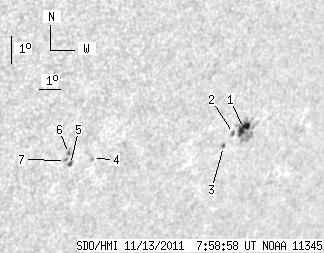

SDO HMI 2011-11-13 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.61 | 37.35 | 11.54 | 31.82 | -24.94 | 87.00 | 47.91 | 235.93 | 0.8135 | 288.9 | -42.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.35 | 26.59 | 7.28 | 23.27 | -24.78 | 88.39 | 49.30 | 236.80 | 0.8248 | 684.5 | 42.6 | |
| 1.55 | 1.98 | 1.34 | 1.71 | -24.93 | 87.97 | 48.88 | 236.45 | 0.8219 | 582.1 | 505.6 | |
| 0.95 | 1.55 | 0.82 | 1.34 | -25.35 | 87.70 | 48.61 | 235.86 | 0.8213 | 582.6 | 492.9 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -25.51 | 81.59 | 42.51 | 232.62 | 0.7697 | -385.0 | -411.3 | |
| 1.81 | 2.32 | 1.38 | 1.77 | -25.68 | 80.69 | 41.60 | 231.92 | 0.7625 | -478.0 | -551.8 | |
| 0.95 | 2.41 | 0.72 | 1.82 | -25.30 | 80.44 | 41.35 | 232.21 | 0.7582 | -816.2 | -682.1 | |
| 0.00 | 1.64 | 0.00 | 1.24 | -25.53 | 80.41 | 41.32 | 231.92 | 0.7592 | -697.0 | -599.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
