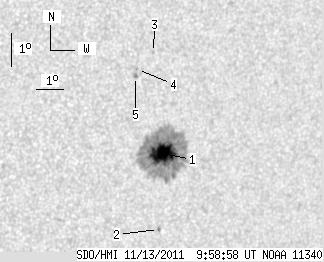

SDO HMI 2011-11-13 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.20 | 191.21 | 18.72 | 118.51 | -8.35 | 73.19 | 35.19 | 251.73 | 0.6029 | 903.4 | 366.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.20 | 186.39 | 18.72 | 115.56 | -8.38 | 73.21 | 35.21 | 251.68 | 0.6032 | 1183.5 | 385.8 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -10.69 | 73.34 | 35.34 | 248.12 | 0.6148 | 638.0 | 578.4 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -5.32 | 72.62 | 34.62 | 256.43 | 0.5842 | -701.0 | -554.5 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.81 | 72.08 | 34.08 | 255.39 | 0.5783 | -763.0 | -566.2 | |
| 0.00 | 1.55 | 0.00 | 0.94 | -6.02 | 72.02 | 34.02 | 255.01 | 0.5782 | -802.0 | -665.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
