SDO HMI 2011-11-13 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.83 | 260.98 | 20.98 | 137.54 | 9.60 | 55.51 | 18.61 | 291.25 | 0.3378 | -596.7 | -311.5 | |
|
previous
or next observation for the same group /

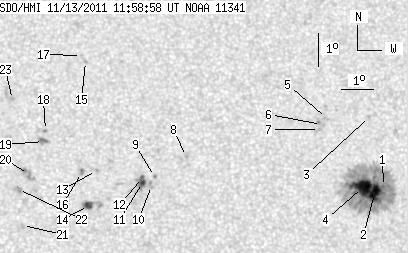

back to the solar disc SDO HMI 2011-11-13 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 201.56 | 0.50 | 107.11 | 9.51 | 57.78 | 20.88 | 288.21 | 0.3717 | -668.0 | -429.8 | |
| 11.96 | -1.00 | 6.36 | -1.00 | 9.30 | 57.48 | 20.58 | 287.90 | 0.3661 | -1243.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 11.61 | 57.48 | 20.58 | 293.81 | 0.3780 | -811.0 | -679.5 | |
| 19.18 | -1.00 | 10.18 | -1.00 | 9.49 | 57.11 | 20.21 | 288.68 | 0.3612 | -1400.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 11.57 | 56.09 | 19.19 | 295.10 | 0.3572 | -749.0 | -665.8 | |
| 0.00 | 2.75 | 0.00 | 1.46 | 11.40 | 55.92 | 19.02 | 294.82 | 0.3535 | -716.0 | -726.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 11.25 | 55.85 | 18.94 | 294.51 | 0.3515 | -988.0 | -797.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 10.50 | 51.60 | 14.70 | 297.73 | 0.2832 | -885.0 | -625.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 9.92 | 50.58 | 13.68 | 297.41 | 0.2636 | -839.0 | -764.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 9.65 | 50.48 | 13.58 | 296.66 | 0.2601 | -777.0 | -796.5 | |
| 2.58 | 9.72 | 1.32 | 4.98 | 9.74 | 50.20 | 13.30 | 297.44 | 0.2567 | -1187.4 | -855.6 | |
| 0.26 | -11.00 | 0.13 | -11.00 | 9.89 | 50.21 | 13.31 | 297.95 | 0.2579 | -982.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 10.12 | 48.80 | 11.90 | 301.41 | 0.2389 | -714.0 | -664.5 | |
| 4.90 | 11.10 | 2.49 | 5.64 | 9.08 | 48.52 | 11.61 | 298.03 | 0.2263 | 1016.0 | 668.5 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 13.39 | 48.60 | 11.70 | 312.44 | 0.2685 | 916.0 | 744.2 | |
| 0.00 | 2.32 | 0.00 | 1.18 | 10.06 | 48.34 | 11.43 | 302.20 | 0.2317 | -1022.0 | -922.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 13.57 | 48.49 | 11.58 | 313.22 | 0.2691 | 883.0 | 719.6 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.33 | 47.28 | 10.37 | 309.32 | 0.2293 | 829.0 | 696.9 | |
| 0.00 | 5.16 | 0.00 | 2.62 | 11.00 | 47.20 | 10.30 | 308.36 | 0.2249 | 958.0 | 851.2 | |
| 0.00 | 7.91 | 0.00 | 4.01 | 10.02 | 46.71 | 9.81 | 306.00 | 0.2083 | 643.0 | 747.6 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 8.50 | 46.49 | 9.58 | 300.11 | 0.1912 | 844.0 | 663.1 | |
| 0.00 | 3.53 | 0.00 | 1.78 | 9.57 | 46.39 | 9.49 | 305.06 | 0.1995 | 1018.0 | 836.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.27 | 46.30 | 9.39 | 315.21 | 0.2274 | 804.0 | 631.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
