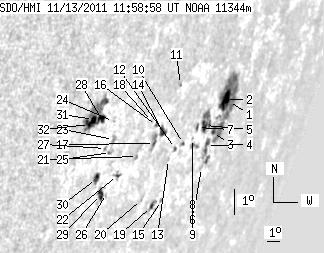

SDO HMI 2011-11-13 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.78 | 199.48 | 67.90 | 285.95 | -17.75 | 104.40 | 67.50 | 249.73 | 0.9374 | 108.4 | 16.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 68.56 | 2.31 | 114.87 | -17.13 | 107.97 | 71.07 | 251.03 | 0.9572 | -275.5 | -20.7 | |
| 7.05 | -1.00 | 11.65 | -1.00 | -17.05 | 107.61 | 70.71 | 251.06 | 0.9554 | 520.3 | 999999 | |
| 1.20 | -1.00 | 1.98 | -1.00 | -18.07 | 107.31 | 70.40 | 249.95 | 0.9547 | 147.9 | 999999 | |
| 5.08 | 10.67 | 8.30 | 17.56 | -18.47 | 107.12 | 70.21 | 249.51 | 0.9541 | 379.3 | 241.5 | |
| 5.85 | 15.48 | 9.16 | 24.19 | -17.80 | 106.42 | 69.52 | 250.08 | 0.9500 | 483.5 | 398.6 | |
| 0.00 | 1.55 | 0.00 | 2.57 | -19.18 | 107.33 | 70.42 | 248.81 | 0.9558 | 238.0 | 255.4 | |
| 0.00 | 2.15 | 0.00 | 3.26 | -17.83 | 105.73 | 68.83 | 249.94 | 0.9465 | 473.0 | 400.2 | |
| 0.34 | 3.70 | 0.53 | 5.70 | -18.37 | 105.75 | 68.85 | 249.38 | 0.9471 | 607.2 | 505.5 | |
| 0.00 | 1.03 | 0.00 | 1.56 | -18.17 | 105.58 | 68.68 | 249.56 | 0.9460 | 480.0 | 436.1 | |
| 0.00 | 1.38 | 0.00 | 2.01 | -18.29 | 104.92 | 68.01 | 249.31 | 0.9426 | 425.0 | 430.9 | |
| 0.00 | 1.12 | 0.00 | 1.50 | -16.35 | 103.22 | 66.31 | 251.05 | 0.9307 | -306.0 | -233.5 | |
| 1.29 | 1.98 | 1.85 | 2.83 | -18.42 | 104.35 | 67.45 | 249.07 | 0.9396 | 444.9 | 439.1 | |
| 0.00 | 1.46 | 0.00 | 2.07 | -18.76 | 104.05 | 67.15 | 248.67 | 0.9383 | 454.0 | 401.8 | |
| 4.30 | 6.02 | 5.74 | 8.04 | -17.81 | 102.84 | 65.94 | 249.43 | 0.9301 | 406.4 | 270.0 | |
| 0.00 | 1.38 | 0.00 | 2.02 | -20.09 | 104.61 | 67.71 | 247.38 | 0.9429 | -100.0 | 15.7 | |
| 0.43 | 1.63 | 0.56 | 2.12 | -17.59 | 102.23 | 65.33 | 249.55 | 0.9261 | 616.2 | 549.4 | |
| 1.98 | 8.60 | 2.61 | 11.29 | -18.17 | 102.49 | 65.59 | 248.98 | 0.9285 | 427.7 | 509.2 | |
| 0.00 | 0.77 | 0.00 | 0.99 | -17.44 | 101.83 | 64.93 | 249.62 | 0.9235 | 562.0 | 520.4 | |
| 1.38 | 4.65 | 1.96 | 6.63 | -20.25 | 103.92 | 67.02 | 247.08 | 0.9393 | -246.0 | -337.7 | |
| 0.00 | 0.86 | 0.00 | 1.17 | -19.97 | 102.88 | 65.98 | 247.17 | 0.9331 | -257.0 | -280.4 | |
| 0.00 | 1.20 | 0.00 | 1.53 | -18.53 | 101.48 | 64.57 | 248.40 | 0.9227 | -175.0 | -138.1 | |
| 1.03 | 4.04 | 1.27 | 4.97 | -19.08 | 100.42 | 63.51 | 247.58 | 0.9168 | -273.2 | -119.6 | |
| 0.00 | 4.04 | 0.00 | 4.73 | -17.89 | 99.35 | 62.45 | 248.62 | 0.9079 | 231.0 | 139.0 | |
| 0.00 | 1.20 | 0.00 | 1.39 | -17.30 | 98.99 | 62.09 | 249.18 | 0.9045 | -184.0 | -119.1 | |
| 0.00 | 2.15 | 0.00 | 2.53 | -18.30 | 99.41 | 62.50 | 248.19 | 0.9089 | 70.0 | 106.8 | |
| 0.00 | 0.69 | 0.00 | 0.84 | -19.63 | 100.03 | 63.13 | 246.90 | 0.9151 | 192.0 | 200.0 | |
| 0.00 | 1.63 | 0.00 | 1.89 | -18.15 | 98.97 | 62.07 | 248.25 | 0.9057 | -301.0 | -261.9 | |
| 4.22 | 39.66 | 4.71 | 43.63 | -17.17 | 98.12 | 61.22 | 249.13 | 0.8981 | -354.7 | -369.8 | |
| 4.39 | 6.37 | 5.26 | 7.63 | -19.65 | 99.62 | 62.72 | 246.80 | 0.9124 | -498.4 | -330.9 | |
| 4.13 | 5.51 | 4.82 | 6.43 | -19.10 | 98.98 | 62.07 | 247.23 | 0.9073 | -462.8 | -386.7 | |
| 2.75 | -28.00 | 3.02 | -28.00 | -17.17 | 97.61 | 60.71 | 249.00 | 0.8944 | -757.2 | 999999 | |
| 1.98 | -28.00 | 2.17 | -28.00 | -17.32 | 97.44 | 60.53 | 248.80 | 0.8934 | -651.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
