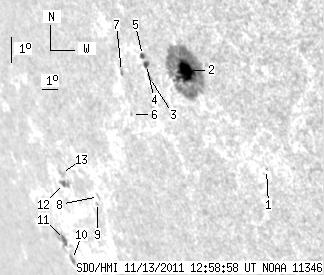

SDO HMI 2011-11-13 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.18 | 171.09 | 30.49 | 188.89 | -19.04 | 336.07 | -60.29 | 113.19 | 0.8904 | 317.3 | 151.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.65 | -20.78 | 342.14 | -54.22 | 116.82 | 0.8520 | 584.0 | 544.8 | |
| 18.24 | 132.21 | 18.12 | 131.50 | -17.79 | 339.13 | -57.23 | 112.56 | 0.8690 | 684.5 | 203.7 | |
| 0.00 | 2.67 | 0.00 | 2.84 | -18.09 | 336.81 | -59.54 | 112.29 | 0.8875 | 305.0 | 275.3 | |
| 2.32 | 3.44 | 2.47 | 3.66 | -17.68 | 336.85 | -59.50 | 111.84 | 0.8864 | 452.9 | 101.8 | |
| 1.98 | 2.84 | 2.10 | 3.02 | -17.40 | 336.76 | -59.60 | 111.51 | 0.8866 | 442.0 | 430.2 | |
| 0.00 | 0.86 | 0.00 | 0.99 | -19.36 | 334.89 | -61.47 | 113.19 | 0.9035 | 361.0 | 330.9 | |
| 0.00 | 2.92 | 0.00 | 3.29 | -17.99 | 335.09 | -61.27 | 111.75 | 0.8998 | -375.0 | -316.6 | |
| 0.00 | 1.29 | 0.00 | 1.80 | -22.23 | 330.26 | -66.10 | 115.17 | 0.9367 | -271.0 | -276.9 | |
| 0.00 | 1.72 | 0.00 | 2.44 | -22.44 | 329.98 | -66.37 | 115.33 | 0.9385 | -280.0 | -279.8 | |
| 0.00 | 3.61 | 0.00 | 6.55 | -24.55 | 325.35 | -71.01 | 116.60 | 0.9631 | -181.0 | -2.7 | |
| 2.32 | 10.67 | 4.16 | 19.40 | -23.88 | 325.41 | -70.94 | 115.93 | 0.9622 | -198.1 | 230.0 | |
| 2.32 | 4.90 | 3.64 | 7.68 | -21.94 | 327.68 | -68.68 | 114.35 | 0.9499 | -366.7 | -304.1 | |
| 0.00 | 3.27 | 0.00 | 5.07 | -21.61 | 327.75 | -68.61 | 114.03 | 0.9492 | -220.0 | -223.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
