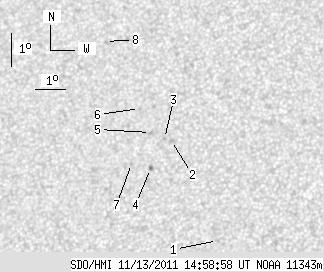

SDO HMI 2011-11-13 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.54 | 0.00 | 5.20 | 12.02 | 12.14 | -23.12 | 67.51 | 0.4179 | -633.1 | -546.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | 9.14 | 14.42 | -20.84 | 72.70 | 0.3695 | 746.0 | 517.7 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 12.10 | 12.70 | -22.56 | 66.75 | 0.4100 | -907.0 | -687.7 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 12.16 | 12.46 | -22.79 | 66.81 | 0.4138 | -873.0 | -659.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 11.25 | 12.08 | -23.17 | 69.19 | 0.4147 | -1007.0 | -854.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 12.33 | 11.99 | -23.27 | 66.81 | 0.4217 | -783.0 | -607.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.04 | 11.55 | -23.71 | 65.59 | 0.4319 | -861.0 | -661.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 11.39 | 11.44 | -23.81 | 69.34 | 0.4248 | -778.0 | -675.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 15.04 | 10.18 | -25.08 | 62.57 | 0.4631 | -602.0 | -478.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
