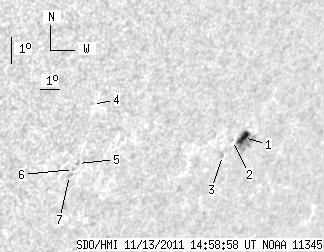

SDO HMI 2011-11-13 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.05 | 30.53 | 6.68 | 28.29 | -24.76 | 87.13 | 51.87 | 237.82 | 0.8450 | 238.6 | -36.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.05 | 23.30 | 6.68 | 22.19 | -24.65 | 88.33 | 53.08 | 238.47 | 0.8545 | 624.1 | -3.4 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -24.73 | 87.78 | 52.52 | 238.18 | 0.8504 | 547.0 | 508.8 | |
| 0.00 | 1.29 | 0.00 | 1.21 | -25.22 | 87.54 | 52.28 | 237.55 | 0.8502 | 586.0 | 447.5 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -23.21 | 80.09 | 44.83 | 236.53 | 0.7790 | -703.0 | -584.8 | |
| 0.00 | 1.81 | 0.00 | 1.45 | -25.18 | 80.28 | 45.02 | 234.36 | 0.7900 | -594.0 | -495.4 | |
| 0.00 | 0.95 | 0.00 | 0.76 | -25.38 | 80.19 | 44.93 | 234.09 | 0.7901 | -744.0 | -560.9 | |
| 0.00 | 1.89 | 0.00 | 1.52 | -25.57 | 80.10 | 44.84 | 233.82 | 0.7903 | -235.0 | -277.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
