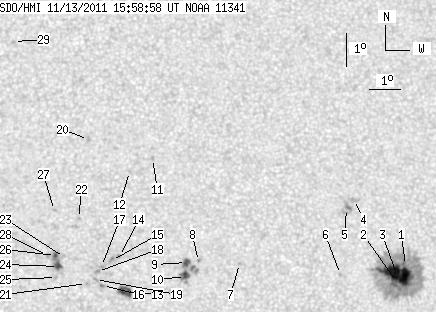

SDO HMI 2011-11-13 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.75 | 256.58 | 30.03 | 136.74 | 9.73 | 55.01 | 20.30 | 290.01 | 0.3645 | -424.0 | -382.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 175.33 | 0.93 | 94.62 | 9.70 | 57.58 | 22.87 | 287.36 | 0.4031 | -827.0 | -432.3 | |
| 0.69 | -1.00 | 0.37 | -1.00 | 9.20 | 57.28 | 22.58 | 286.32 | 0.3966 | -1168.4 | 999999 | |
| 31.56 | -1.00 | 17.02 | -1.00 | 9.47 | 57.27 | 22.56 | 286.99 | 0.3974 | -1334.7 | 999999 | |
| 0.00 | 4.21 | 0.00 | 2.26 | 11.70 | 56.07 | 21.36 | 293.34 | 0.3902 | -777.0 | -703.4 | |
| 0.00 | 7.82 | 0.00 | 4.20 | 11.44 | 55.79 | 21.08 | 292.95 | 0.3845 | -866.0 | -781.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 9.47 | 55.45 | 20.75 | 288.23 | 0.3695 | -838.0 | -631.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 9.85 | 52.26 | 17.55 | 292.12 | 0.3222 | -863.0 | -633.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 9.93 | 50.97 | 16.27 | 293.82 | 0.3030 | -740.0 | -619.1 | |
| 3.78 | 20.98 | 1.96 | 10.88 | 9.91 | 50.60 | 15.89 | 294.22 | 0.2971 | -1007.6 | -882.4 | |
| 4.04 | -9.00 | 2.09 | -9.00 | 9.49 | 50.54 | 15.84 | 292.96 | 0.2937 | -1129.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 13.04 | 49.70 | 15.00 | 304.78 | 0.3084 | 861.0 | 716.1 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 12.66 | 48.96 | 14.25 | 305.03 | 0.2947 | 637.0 | 443.1 | |
| 9.37 | 11.09 | 4.81 | 5.69 | 9.07 | 48.66 | 13.95 | 294.05 | 0.2620 | 1039.7 | 722.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 10.12 | 48.52 | 13.81 | 297.89 | 0.2671 | -1047.0 | -851.8 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 10.00 | 48.27 | 13.56 | 297.92 | 0.2625 | -990.0 | -868.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 9.26 | 47.96 | 13.25 | 295.81 | 0.2525 | 801.0 | 691.6 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 9.82 | 47.95 | 13.24 | 297.84 | 0.2564 | -799.0 | -670.3 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 9.68 | 47.82 | 13.11 | 297.54 | 0.2534 | -1047.0 | -865.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 9.44 | 47.75 | 13.04 | 296.81 | 0.2506 | -481.0 | -398.6 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 13.64 | 47.73 | 13.02 | 310.18 | 0.2879 | 772.0 | 582.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 9.32 | 47.47 | 12.76 | 296.87 | 0.2455 | 577.0 | 540.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 11.27 | 47.30 | 12.59 | 303.97 | 0.2590 | 831.0 | 733.3 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 10.11 | 46.82 | 12.11 | 300.95 | 0.2420 | 320.0 | 400.3 | |
| 4.04 | 10.92 | 2.06 | 5.57 | 9.84 | 46.62 | 11.92 | 300.37 | 0.2369 | 969.6 | 925.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.51 | 46.55 | 11.84 | 299.29 | 0.2332 | 903.0 | 724.5 | |
| 1.55 | -24.00 | 0.79 | -24.00 | 10.17 | 46.54 | 11.84 | 301.74 | 0.2385 | 1020.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 11.52 | 46.57 | 11.86 | 306.35 | 0.2512 | 653.0 | 553.7 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 10.17 | 46.30 | 11.59 | 302.28 | 0.2350 | 861.0 | 728.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 16.63 | 45.55 | 10.84 | 322.59 | 0.2980 | 788.0 | 616.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
