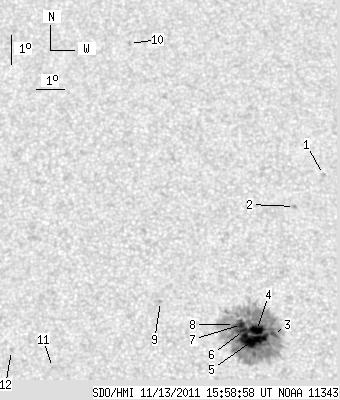

SDO HMI 2011-11-13 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.35 | 278.00 | 21.19 | 153.82 | 28.21 | 43.03 | 8.32 | 343.31 | 0.4463 | -1018.6 | -451.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.01 | 33.47 | 46.13 | 11.43 | 341.95 | 0.5354 | -663.0 | -605.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 32.38 | 44.95 | 10.25 | 342.97 | 0.5150 | -804.0 | -618.0 | |
| 2.84 | 269.83 | 1.57 | 149.14 | 28.11 | 43.80 | 9.09 | 341.81 | 0.4483 | -693.3 | -455.2 | |
| 8.51 | -3.00 | 4.71 | -3.00 | 28.25 | 43.23 | 8.52 | 342.97 | 0.4476 | -1207.1 | 999999 | |
| 21.07 | -3.00 | 11.62 | -3.00 | 27.92 | 43.07 | 8.36 | 343.03 | 0.4420 | -1411.1 | 999999 | |
| 2.24 | -3.00 | 1.24 | -3.00 | 28.25 | 42.79 | 8.08 | 343.80 | 0.4457 | -1001.5 | 999999 | |
| 2.92 | -3.00 | 1.62 | -3.00 | 28.45 | 42.73 | 8.03 | 344.04 | 0.4484 | -911.1 | 999999 | |
| 0.77 | -3.00 | 0.43 | -3.00 | 28.45 | 42.50 | 7.79 | 344.48 | 0.4474 | -843.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 29.23 | 40.02 | 5.32 | 349.61 | 0.4504 | -814.0 | -713.3 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 38.14 | 39.44 | 4.73 | 353.56 | 0.5808 | -806.0 | -594.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 27.07 | 36.31 | 1.61 | 356.49 | 0.4095 | 740.0 | 574.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 27.63 | 34.95 | 0.24 | 359.48 | 0.4176 | 727.0 | 601.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
