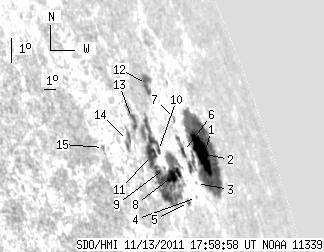

SDO HMI 2011-11-13 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.26 | 339.88 | 101.10 | 567.19 | 19.12 | 106.25 | 72.65 | 289.10 | 0.9550 | -363.3 | -180.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.26 | 159.66 | 21.37 | 298.84 | 19.04 | 108.62 | 75.02 | 288.91 | 0.9664 | 436.3 | 28.1 | |
| 18.40 | -1.00 | 33.77 | -1.00 | 19.04 | 108.01 | 74.41 | 288.93 | 0.9638 | -536.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.59 | 18.17 | 106.65 | 73.05 | 288.07 | 0.9574 | -378.0 | -327.2 | |
| 0.00 | 0.95 | 0.00 | 1.56 | 17.75 | 106.21 | 72.61 | 287.66 | 0.9551 | -277.0 | -269.7 | |
| 0.00 | 2.49 | 0.00 | 3.92 | 17.65 | 105.28 | 71.68 | 287.59 | 0.9504 | -381.0 | -329.3 | |
| 3.35 | 8.86 | 5.59 | 14.72 | 19.18 | 106.38 | 72.78 | 289.15 | 0.9563 | -445.6 | -453.6 | |
| 0.00 | 1.81 | 0.00 | 3.05 | 20.21 | 106.61 | 73.01 | 290.21 | 0.9576 | -323.0 | -292.9 | |
| 13.15 | 128.63 | 20.14 | 190.81 | 18.52 | 104.65 | 71.04 | 288.54 | 0.9473 | -655.5 | -464.5 | |
| 0.00 | 1.20 | 0.00 | 1.79 | 18.77 | 104.02 | 70.42 | 288.84 | 0.9441 | -583.0 | -607.8 | |
| 0.69 | -8.00 | 1.02 | -8.00 | 19.33 | 104.01 | 70.41 | 289.44 | 0.9442 | -333.9 | 999999 | |
| 13.41 | -8.00 | 19.21 | -8.00 | 19.21 | 103.24 | 69.64 | 289.36 | 0.9399 | -660.9 | 999999 | |
| 0.00 | 13.67 | 0.00 | 21.49 | 21.39 | 105.07 | 71.47 | 291.54 | 0.9505 | -516.0 | -314.0 | |
| 0.00 | 9.54 | 0.00 | 13.38 | 20.44 | 102.61 | 69.01 | 290.71 | 0.9369 | -450.0 | -370.4 | |
| 0.00 | 9.97 | 0.00 | 13.39 | 19.76 | 101.63 | 68.03 | 290.07 | 0.9308 | -152.0 | -191.1 | |
| 0.00 | 2.15 | 0.00 | 2.65 | 19.64 | 99.57 | 65.96 | 290.12 | 0.9178 | 586.0 | 520.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
