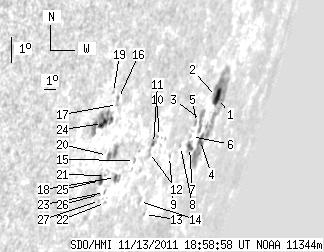

SDO HMI 2011-11-13 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.24 | 151.83 | 41.95 | 270.25 | -17.66 | 104.80 | 71.75 | 250.53 | 0.9588 | 80.9 | 44.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 71.54 | 4.40 | 151.96 | -16.96 | 108.00 | 74.95 | 251.75 | 0.9737 | -366.2 | 45.7 | |
| 4.73 | -1.00 | 9.86 | -1.00 | -16.88 | 107.67 | 74.62 | 251.79 | 0.9724 | 395.2 | 999999 | |
| 0.00 | 9.03 | 0.00 | 17.74 | -17.58 | 106.71 | 73.66 | 250.95 | 0.9690 | 643.0 | 457.8 | |
| 3.78 | -1.00 | 7.80 | -1.00 | -18.25 | 107.36 | 74.31 | 250.36 | 0.9719 | 254.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 3.11 | -17.62 | 106.20 | 73.15 | 250.84 | 0.9668 | 583.0 | 470.4 | |
| 0.00 | 0.52 | 0.00 | 0.98 | -18.05 | 106.12 | 73.07 | 250.38 | 0.9668 | 575.0 | 549.5 | |
| 3.01 | 4.64 | 5.82 | 8.95 | -18.41 | 106.30 | 73.25 | 250.04 | 0.9678 | 509.4 | 452.5 | |
| 0.00 | 0.95 | 0.00 | 1.72 | -18.32 | 105.24 | 72.19 | 249.98 | 0.9632 | 240.0 | 269.1 | |
| 0.00 | 1.03 | 0.00 | 1.79 | -18.59 | 104.40 | 71.35 | 249.57 | 0.9596 | 249.0 | 211.5 | |
| 0.00 | 0.77 | 0.00 | 1.22 | -17.87 | 102.68 | 69.63 | 250.03 | 0.9507 | 494.0 | 484.4 | |
| 0.00 | 1.89 | 0.00 | 2.95 | -18.08 | 102.41 | 69.36 | 249.77 | 0.9495 | 628.0 | 549.0 | |
| 0.00 | 1.72 | 0.00 | 2.67 | -18.36 | 102.30 | 69.25 | 249.47 | 0.9492 | 531.0 | 498.3 | |
| 0.00 | 1.03 | 0.00 | 1.77 | -20.41 | 103.84 | 70.79 | 247.61 | 0.9585 | -238.0 | -259.5 | |
| 0.00 | 1.89 | 0.00 | 3.07 | -19.94 | 102.88 | 69.83 | 247.92 | 0.9536 | -82.0 | -131.0 | |
| 0.00 | 1.29 | 0.00 | 1.90 | -18.55 | 101.16 | 68.11 | 249.06 | 0.9433 | -334.0 | -135.7 | |
| 0.00 | 2.06 | 0.00 | 2.65 | -16.46 | 98.33 | 65.28 | 250.74 | 0.9245 | 558.0 | 412.1 | |
| 0.00 | 1.46 | 0.00 | 1.88 | -16.65 | 98.38 | 65.33 | 250.55 | 0.9250 | 452.0 | 333.6 | |
| 1.98 | 5.59 | 2.78 | 7.90 | -19.03 | 99.98 | 66.93 | 248.34 | 0.9373 | 340.7 | -57.5 | |
| 0.00 | 0.69 | 0.00 | 0.87 | -16.25 | 97.83 | 64.78 | 250.87 | 0.9210 | -249.0 | -147.9 | |
| 1.03 | 9.37 | 1.37 | 12.62 | -18.27 | 98.76 | 65.71 | 248.90 | 0.9293 | -337.1 | 198.4 | |
| 0.00 | 0.60 | 0.00 | 0.81 | -18.92 | 99.10 | 66.05 | 248.28 | 0.9321 | -119.0 | -91.9 | |
| 0.00 | 0.77 | 0.00 | 1.09 | -19.82 | 99.83 | 66.78 | 247.49 | 0.9374 | -267.0 | -129.7 | |
| 0.00 | 1.12 | 0.00 | 1.54 | -19.48 | 99.47 | 66.42 | 247.77 | 0.9350 | -303.0 | -240.3 | |
| 4.30 | 25.79 | 5.42 | 32.37 | -17.21 | 97.64 | 64.59 | 249.81 | 0.9210 | -619.5 | -441.1 | |
| 3.35 | 4.56 | 4.50 | 6.10 | -19.07 | 98.82 | 65.77 | 248.08 | 0.9307 | -452.0 | -315.2 | |
| 0.00 | 1.03 | 0.00 | 1.41 | -19.53 | 99.11 | 66.06 | 247.65 | 0.9329 | -489.0 | -526.5 | |
| 0.00 | 0.86 | 0.00 | 1.18 | -19.73 | 99.27 | 66.22 | 247.47 | 0.9341 | -270.0 | -292.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
