SDO HMI 2011-11-13 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.52 | 182.29 | 38.01 | 172.11 | -18.79 | 337.02 | -54.92 | 114.39 | 0.8489 | 459.2 | 212.4 | |
|
previous
or next observation for the same group /

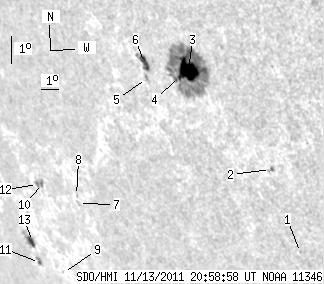

back to the solar disc SDO HMI 2011-11-13 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.67 | -23.52 | 342.26 | -49.69 | 121.59 | 0.8230 | 400.0 | 317.7 | |
| 0.00 | 2.49 | 0.00 | 2.12 | -20.82 | 342.07 | -49.87 | 118.43 | 0.8149 | 545.0 | 489.8 | |
| 23.73 | 146.44 | 20.99 | 129.56 | -17.79 | 339.26 | -52.68 | 113.91 | 0.8305 | 903.7 | 256.3 | |
| 0.69 | -3.00 | 0.62 | -3.00 | -18.00 | 338.70 | -53.24 | 113.97 | 0.8360 | 247.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 2.18 | -18.15 | 336.87 | -55.08 | 113.57 | 0.8522 | 522.0 | 387.7 | |
| 7.31 | 9.80 | 6.83 | 9.16 | -17.63 | 336.99 | -54.95 | 113.03 | 0.8498 | 479.2 | 375.4 | |
| 0.00 | 1.89 | 0.00 | 2.26 | -22.48 | 330.08 | -61.86 | 116.42 | 0.9117 | -316.0 | -224.1 | |
| 0.00 | 0.86 | 0.00 | 1.02 | -22.21 | 330.15 | -61.80 | 116.16 | 0.9108 | -425.0 | -323.0 | |
| 0.00 | 0.43 | 0.00 | 0.59 | -24.91 | 326.82 | -65.12 | 118.18 | 0.9350 | -118.0 | -110.6 | |
| 1.46 | 4.82 | 1.87 | 6.22 | -21.93 | 327.96 | -63.98 | 115.33 | 0.9240 | -518.9 | -410.6 | |
| 1.20 | 3.27 | 1.78 | 4.82 | -24.66 | 325.13 | -66.81 | 117.54 | 0.9436 | -178.3 | -131.8 | |
| 0.69 | -10.00 | 0.90 | -10.00 | -21.98 | 327.55 | -64.40 | 115.29 | 0.9265 | -342.9 | 999999 | |
| 3.44 | 9.20 | 5.02 | 13.51 | -23.96 | 325.29 | -66.65 | 116.85 | 0.9419 | -238.6 | 66.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
