SDO HMI 2011-11-13 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.49 | 89.10 | 10.88 | 62.47 | 8.29 | 347.11 | -44.84 | 81.30 | 0.7079 | 309.4 | 23.0 | |
|
previous
or next observation for the same group /

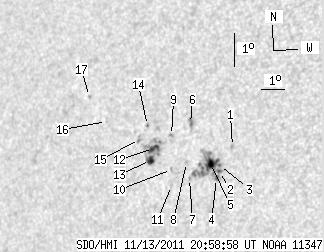

back to the solar disc SDO HMI 2011-11-13 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.40 | 8.70 | 349.10 | -42.85 | 80.49 | 0.6839 | -336.0 | -378.8 | |
| 1.38 | 41.45 | 0.94 | 28.45 | 7.94 | 348.67 | -43.28 | 81.65 | 0.6886 | 651.0 | -173.6 | |
| 0.43 | -2.00 | 0.29 | -2.00 | 8.12 | 348.64 | -43.30 | 81.39 | 0.6890 | 915.0 | 999999 | |
| 1.55 | -2.00 | 1.06 | -2.00 | 7.73 | 348.57 | -43.37 | 81.97 | 0.6896 | 522.7 | 999999 | |
| 3.10 | -2.00 | 2.12 | -2.00 | 8.17 | 348.26 | -43.68 | 81.37 | 0.6938 | -541.2 | 999999 | |
| 0.00 | 3.44 | 0.00 | 2.40 | 9.33 | 347.25 | -44.70 | 79.83 | 0.7075 | 851.0 | 724.3 | |
| 0.00 | 1.38 | 0.00 | 0.96 | 7.69 | 347.45 | -44.49 | 82.13 | 0.7035 | -558.0 | -374.8 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 8.16 | 347.26 | -44.69 | 81.48 | 0.7062 | 279.0 | 258.0 | |
| 0.00 | 1.55 | 0.00 | 1.09 | 8.94 | 346.50 | -45.44 | 80.46 | 0.7161 | 689.0 | 556.6 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 7.93 | 346.65 | -45.29 | 81.86 | 0.7134 | 605.0 | 521.9 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 7.45 | 346.72 | -45.23 | 82.52 | 0.7123 | -313.0 | -281.1 | |
| 4.82 | 29.15 | 3.45 | 20.88 | 8.52 | 345.79 | -46.16 | 81.11 | 0.7243 | 715.5 | 297.7 | |
| 4.21 | -12.00 | 3.02 | -12.00 | 8.16 | 345.71 | -46.23 | 81.61 | 0.7249 | 734.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.12 | 9.20 | 345.41 | -46.53 | 80.22 | 0.7293 | -791.0 | -638.3 | |
| 0.00 | 2.92 | 0.00 | 2.12 | 8.77 | 345.14 | -46.81 | 80.83 | 0.7322 | -642.0 | -504.1 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 9.25 | 343.58 | -48.37 | 80.34 | 0.7507 | 642.0 | 586.0 | |
| 0.00 | 1.38 | 0.00 | 1.05 | 9.96 | 342.66 | -49.29 | 79.49 | 0.7616 | 766.0 | 567.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
