SDO HMI 2011-11-13 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.92 | 304.84 | 35.20 | 166.74 | 9.69 | 54.30 | 24.02 | 287.23 | 0.4208 | -304.6 | -278.1 | |
|
previous
or next observation for the same group /

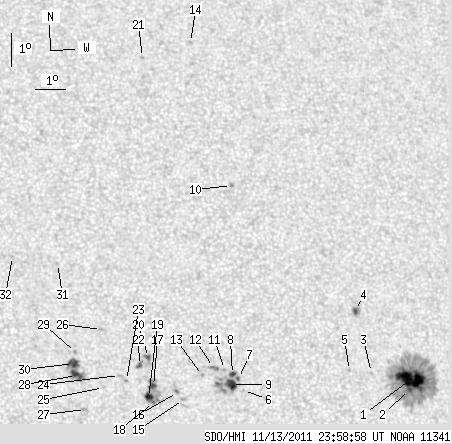

back to the solar disc SDO HMI 2011-11-13 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.09 | 181.91 | 15.15 | 101.75 | 9.49 | 57.36 | 27.07 | 284.76 | 0.4661 | -1231.1 | -404.7 | |
| 2.06 | -1.00 | 1.15 | -1.00 | 9.16 | 57.26 | 26.98 | 284.11 | 0.4637 | -1029.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.70 | 56.03 | 25.75 | 285.82 | 0.4469 | -832.0 | -710.9 | |
| 2.15 | 4.04 | 1.19 | 2.24 | 11.57 | 55.67 | 25.38 | 290.07 | 0.4489 | -995.8 | -810.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 9.78 | 55.31 | 25.02 | 286.36 | 0.4362 | -785.0 | -570.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 9.25 | 51.79 | 21.51 | 287.20 | 0.3805 | -600.0 | -470.4 | |
| 1.20 | 32.60 | 0.64 | 17.39 | 9.61 | 51.66 | 21.37 | 288.22 | 0.3799 | -752.8 | -776.1 | |
| 2.32 | -7.00 | 1.24 | -7.00 | 9.74 | 51.47 | 21.18 | 288.66 | 0.3776 | -948.6 | 999999 | |
| 7.65 | -7.00 | 4.09 | -7.00 | 9.44 | 51.42 | 21.13 | 287.94 | 0.3755 | -1108.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 15.42 | 51.94 | 21.65 | 301.52 | 0.4190 | 883.0 | 718.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 9.89 | 51.22 | 20.94 | 289.24 | 0.3745 | -867.0 | -722.4 | |
| 0.00 | 3.96 | 0.00 | 2.11 | 9.96 | 50.87 | 20.59 | 289.69 | 0.3694 | -1079.0 | -840.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 9.72 | 50.51 | 20.22 | 289.37 | 0.3627 | -856.0 | -626.9 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 19.82 | 51.11 | 20.83 | 311.14 | 0.4460 | 707.0 | 622.5 | |
| 0.00 | 2.41 | 0.00 | 1.27 | 9.02 | 49.86 | 19.57 | 287.98 | 0.3493 | 532.0 | 269.6 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 9.23 | 49.68 | 19.39 | 288.71 | 0.3475 | 821.0 | 587.4 | |
| 3.27 | 25.03 | 1.72 | 13.15 | 9.42 | 48.92 | 18.64 | 289.89 | 0.3368 | 925.2 | 559.5 | |
| 0.26 | -17.00 | 0.14 | -17.00 | 8.94 | 48.90 | 18.61 | 288.55 | 0.3340 | 900.0 | 999999 | |
| 3.61 | -17.00 | 1.90 | -17.00 | 9.10 | 48.75 | 18.46 | 289.12 | 0.3324 | 1093.4 | 999999 | |
| 2.06 | 5.68 | 1.09 | 2.99 | 10.29 | 48.82 | 18.53 | 292.43 | 0.3398 | -911.0 | -555.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 19.39 | 49.45 | 19.16 | 312.57 | 0.4222 | 883.0 | 710.4 | |
| 0.95 | 3.53 | 0.50 | 1.85 | 10.06 | 48.52 | 18.23 | 292.08 | 0.3339 | -1023.3 | -800.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.61 | 48.08 | 17.79 | 291.25 | 0.3247 | -765.0 | -592.4 | |
| 0.00 | 2.24 | 0.00 | 1.17 | 9.77 | 47.87 | 17.58 | 291.92 | 0.3223 | -643.0 | -510.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 9.42 | 47.34 | 17.06 | 291.43 | 0.3122 | 605.0 | 341.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 11.15 | 47.38 | 17.09 | 296.47 | 0.3235 | 810.0 | 608.9 | |
| 0.00 | 2.41 | 0.00 | 1.25 | 8.77 | 46.75 | 16.46 | 290.04 | 0.2994 | 739.0 | 656.0 | |
| 6.02 | 22.53 | 3.13 | 11.70 | 9.79 | 46.52 | 16.23 | 293.50 | 0.3017 | 996.9 | 769.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 10.48 | 46.52 | 16.23 | 295.59 | 0.3062 | 785.0 | 644.5 | |
| 6.28 | -28.00 | 3.26 | -28.00 | 10.15 | 46.44 | 16.15 | 294.70 | 0.3028 | 928.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.15 | 46.11 | 15.83 | 303.79 | 0.3210 | 697.0 | 561.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.38 | 44.71 | 14.42 | 306.82 | 0.3040 | 744.0 | 591.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
